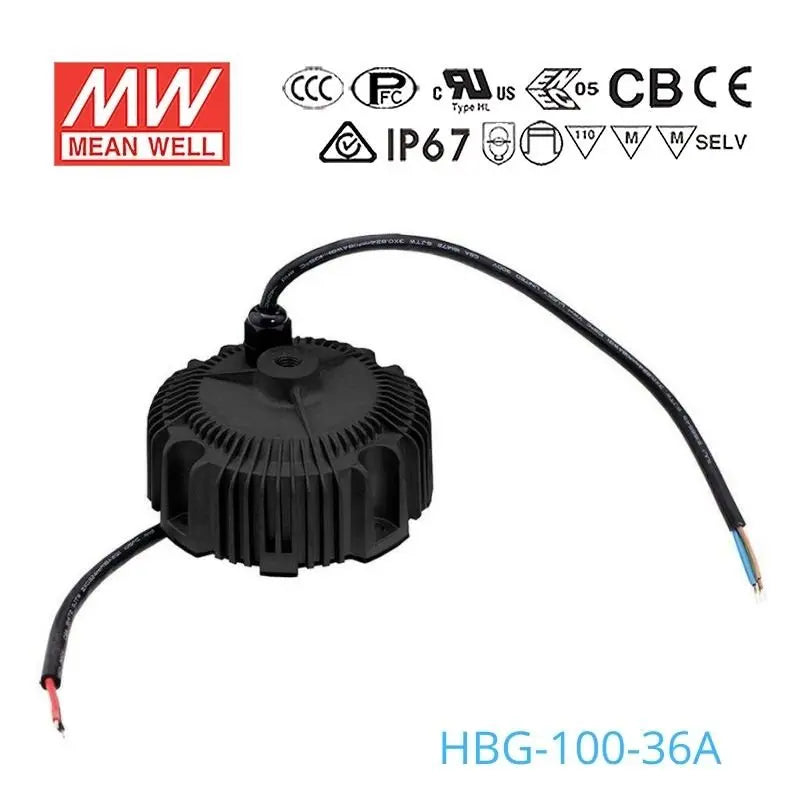

HBG-100-36A

Name: HBG-100-36A
Brand: MEAN WELL
Price: 41.17 USD
Availability: OutOfStock

$41.17

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$39.11

20+

$38.29

50+

$37.46

100+

$36.64

200+

$35.82

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

37V

Rated Current

2.7A

Power Rating

97.2W

Waterproof

IP65

Dimensions

5.11 x 5.11 x 2.61 in

Weight

2.60 lbs

Features

Constant current mode output

Circular plastic housing with class II design

Built-in active PFC function

Class 2 power unit

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	90~305VAC 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
DC adjustment range	65%~100% rated current
Over current protection	95 ~ 108%; Constant current limiting
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-40~+85°C
Safety standards	UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	SJTW 18AWG/SVT 18AWG
Dimension (DxH)	φ130x66.5
Packing	1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)
