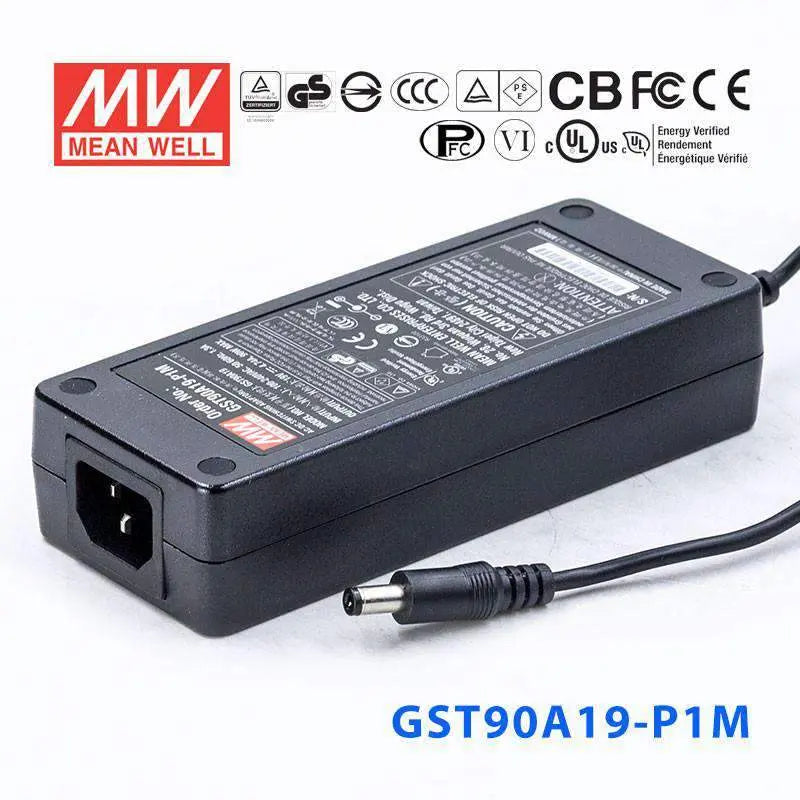

GST90A19-P1M

Name: GST90A19-P1M
Brand: MEAN WELL
Price: 31.51 USD
Availability: OutOfStock

$31.51

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$29.93

20+

$29.30

50+

$28.67

100+

$28.04

200+

$27.41

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

19V

Rated Current

4.74A

Power Rating

90W

Waterproof

Non-waterproof

Dimensions

5.70 x 2.36 x 1.25 in

Weight

0.99 lbs

Features

Universal AC input / Full range

No load power consumption < 0.075W

Energy Efficiency Level VI

Meet EISA 2007 (Energy Independence and Security Act)

NRCan compliant

3 pole AC inlet IEC320-C14

Class I power (with earth pin) only

Protections: Overload / Over voltage/Over temperature

Fully enclosed plastic case

LED indicator for power on

Pass LPS

Built-in active PFC function

3 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
Overload protection	110%~150% rated output voltage, hiccup mode, auto-recovery
Over voltage protection	105%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-40~+85°C (refer to output derating curve )
Safety standards	UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable	100cm of UL1185, 14AWG for 12~15V; 120cm of UL1185, 16AWG for 19~48V
Dimension (LxWxH)	145x 60x 32mm
Standard DC plug	P1M: 2.5ID x 5.5OD x11L, tuning fork type
