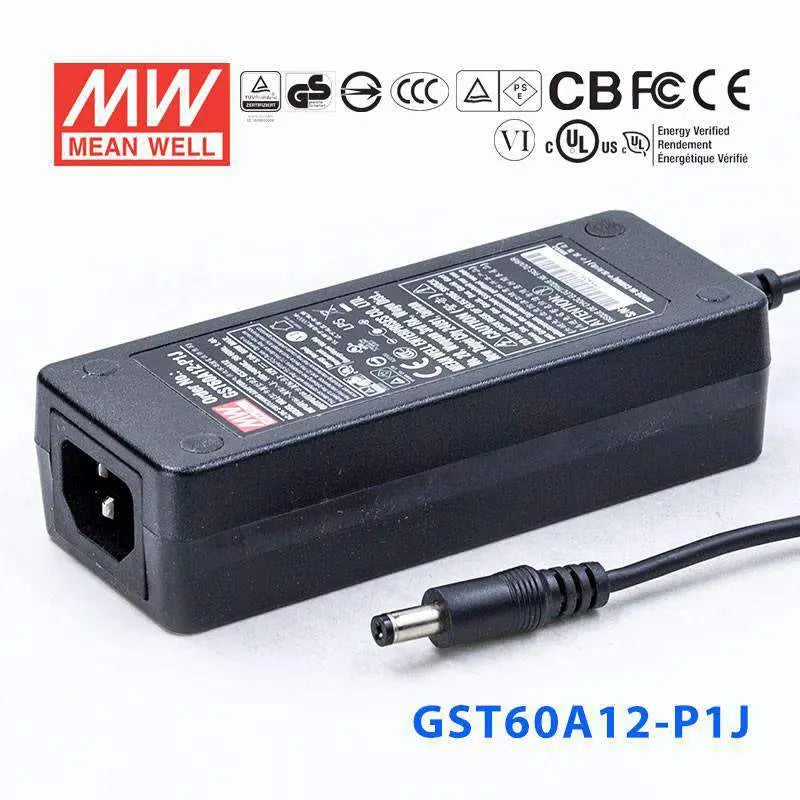

GST60A12-P1J

Name: GST60A12-P1J
Brand: MEAN WELL
SKU: 9461684
Price: 18.83 USD
Availability: InStock

$18.83

Availability: ✔ 37 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$17.89

20+

$17.51

50+

$17.14

100+

$16.76

200+

$16.38

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

Power Rating

60W

Waterproof

Non-waterproof

Dimensions

4.92 x 1.96 x 1.24 in

Weight

0.67 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

No load power consumption < 0.075W

Energy Efficiency Level VI

Meet EISA 2007 (Energy Independence and Security Act)

NRCan compliant

3 pole AC inlet IEC320-C14

Class I power (with earth pin) only

Protections: Overload / Over voltage/Over temperature

Fully enclosed plastic case

LED indicator for power on

Pass LPS

3 years warranty

General Specification

AC input voltage range	90~264VAC 135~370VDC
AC inrush current (max.)	Cold start, 65A at 230VAC
Overload protection	105%~150% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve )
Safety standards	UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, AS/NZS 60950.1approved
EMC standards	EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable	120cm of 16AWG for 5~12V ; 180cm of UL1185, 18AWG for 15~48V
Dimension (LxWxH)	125x 50x 31.5mm
Standard DC plug	P1J: 2.1ID x 5.5OD x 11L, tuning fork type
