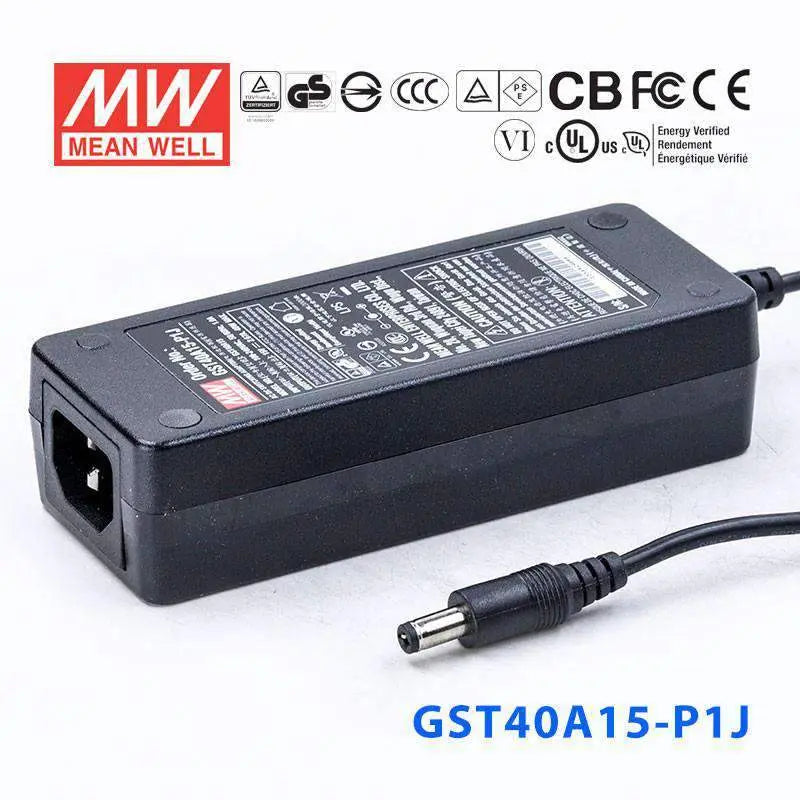

GST40A15-P1J

Name: GST40A15-P1J
Brand: MEAN WELL
Price: 17.01 USD
Availability: OutOfStock

$17.01

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$16.16

20+

$15.82

50+

$15.48

100+

$15.14

200+

$14.80

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

2.67A

Power Rating

40W

Waterproof

Non-waterproof

Dimensions

4.92 x 1.96 x 1.24 in

Weight

0.61 lbs

Features

Universal AC input / Full range

No load power consumption < 0.3W

Energy efficiency Level VI

Meet EISA 2007 (Energy Independence and Security Act)

NRCan compliant

MEPS compliant

3 pole AC inlet IEC320-C14

Class I power (with earth pin) only

Protections: Short circuit / Overload / Over voltage

Fully enclosed plastic case

LED indicator for power on

Pass LPS

3 years warranty

General Specification

AC input voltage range	90~264VAC / 1.0A
AC inrush current (max.)	Cold start, 65A at 230VAC
Overload protection Range	105%~150% rated output power
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection	105%~135% rated output voltage
Setup, rise, hold up time	1000ms, 30ms, 50ms at 230VAC input
Withstand voltage	I/P-O/P:3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+60°C
Safety standards	UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, CNS13438, GB9254, FCC part15 class B
Length of output cable	100cm of UL1185, 16AWG for 5~15V; 180cm of UL1185, 18AWG for 18~48V
Dimension (LxWxH)	125x 50x 31.5 mm
Standard DC plug	P1J: 2.1ID x 5.5OD x11mmL, tuning fork type
