GST18B05-P1J

Name: GST18B05-P1J
Brand: MEAN WELL
SKU: 9461944
Price: 16.39 USD
Availability: InStock

$16.39

Availability: ✔ 60 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$15.57

20+

$15.24

50+

$14.91

100+

$14.59

200+

$14.26

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

15W

Waterproof

Non-waterproof

Dimensions

3.11 x 2.13 x 1.30 in

Weight

0.19 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

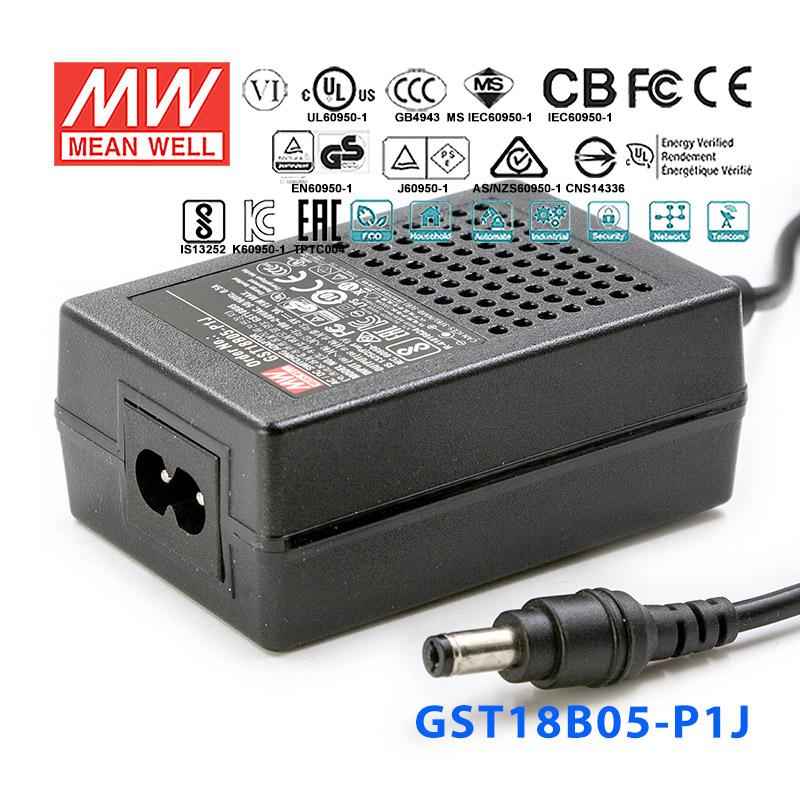

The GST18B05-P1J is a compact and highly reliable 15W desktop AC/DC power adapter designed for industrial, commercial, and electronic applications requiring stable 5VDC output power. It supports a universal AC input range of 85–264VAC and complies with Energy Efficiency Level VI standards for reduced power consumption and improved efficiency. Designed with a fully enclosed plastic housing and Class II construction, the adapter features low no-load power consumption, built-in power indication, and comprehensive protection functions including short circuit, overload, and overvoltage protection. Its compact design and dependable performance make it suitable for networking devices, industrial equipment, communication systems, consumer electronics, and various low-power applications.

General Specifications

Parameter	Specification
Model	GST18B05-P1J
Series	GST18B
Power Rating	15W
Output Voltage	5VDC
Rated Current	3A
Input Voltage Range	85–264VAC
Input Frequency	47–63Hz
Efficiency	Level VI
No. of Outputs	1
Operation Mode	Constant Voltage
Operating Temperature	-30°C to +70°C
Connector Type	2.1mm × 5.5mm Barrel Plug
Polarity	Center Positive
Dimensions	79 × 54 × 33mm
Weight	0.19kg
Protection	Short Circuit / Overload / Over Voltage
Certifications	UL, CE, CB, EAC, CCC
Housing Type	Fully Enclosed Plastic
Input Connector	IEC320-C8
