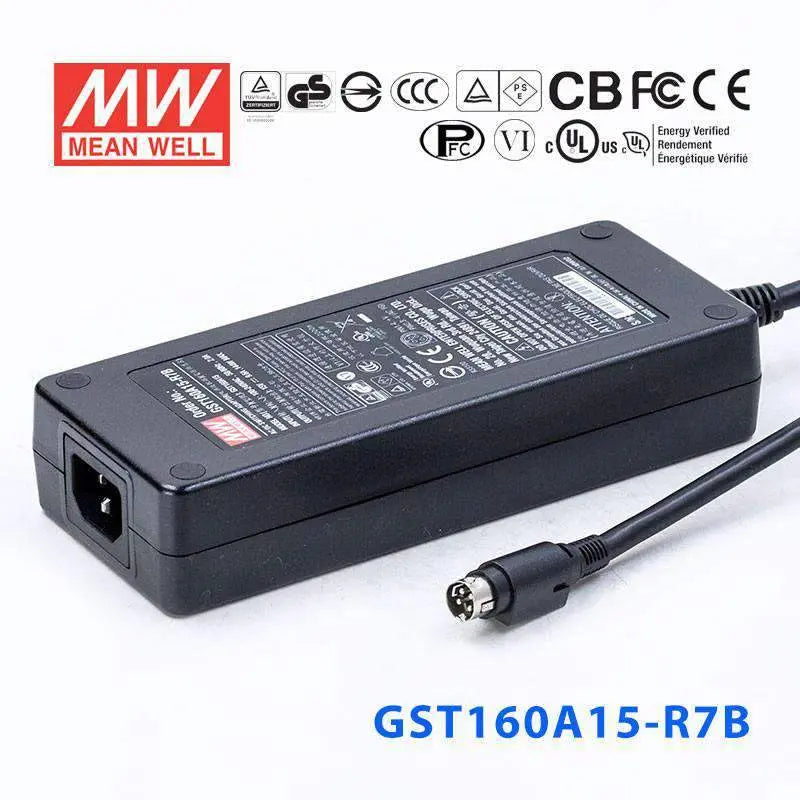

GST160A15-R7B

Name: GST160A15-R7B
Brand: MEAN WELL
Price: 49.92 USD
Availability: OutOfStock

$49.92

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$47.42

20+

$46.43

50+

$45.43

100+

$44.43

200+

$43.43

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

9.6A

Power Rating

144W

Waterproof

Non-waterproof

Dimensions

6.88 x 2.83 x 1.37 in

Weight

1.45 lbs

Features

Universal AC input / Full range

No load power consumption < 0.15W

Energy efficiency Level VI

Meet EISA 2007 (Energy Independence and Security Act)

NRCan compliant

MEPS compliant

3 pole AC inlet IEC320-C14

Class I power (with earth pin) only

Protections: Short circuit / Overload / Over voltage / Over temp.

Fully enclosed plastic case

LED indicator for power on

Built-in active PFC function

Fanless design

3 years warranty

General Specification

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	Cold start, 120A at 230VAC
Overload protection Range	105%~135% rated output power
Overload protection Type	Hiccup mode, auto-recovery
Over voltage protection Range	105%~135% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Hold up time	20ms at full load
Withstand voltage	I/P-O/P: 3kVAC, 1 minute
Working temperature	-30~+70°C
Safety standards	UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1(except for 48V) approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part 15 class B, CNS13438, GB9254
Length of output cable	120cm of UL2464, 18AWGx4C
Dimension (LxWxH)	175x 72x 35 mm
Standard DC plug	R7B: Power DIN 4P with lock type
