GST120A20-P1M
Manufacturer MEAN WELL

GST120A20-P1M

Availability: Out of stock
120 W20 V6 A85V-264V in

Request a Backorder

Submit your request and we will confirm lead time.

GST120A20-P1M
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$45.85 USD
10+
$43.56 USD
20+
$42.64 USD
50+
$41.72 USD
100+
$40.81 USD
200+
$39.89 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V-264V
Output Voltage
20V
Rated Current
6A
Power Rating
120W
Waterproof
Non-waterproof
Dimensions & Weight
6.57 x 2.64 x 1.38 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

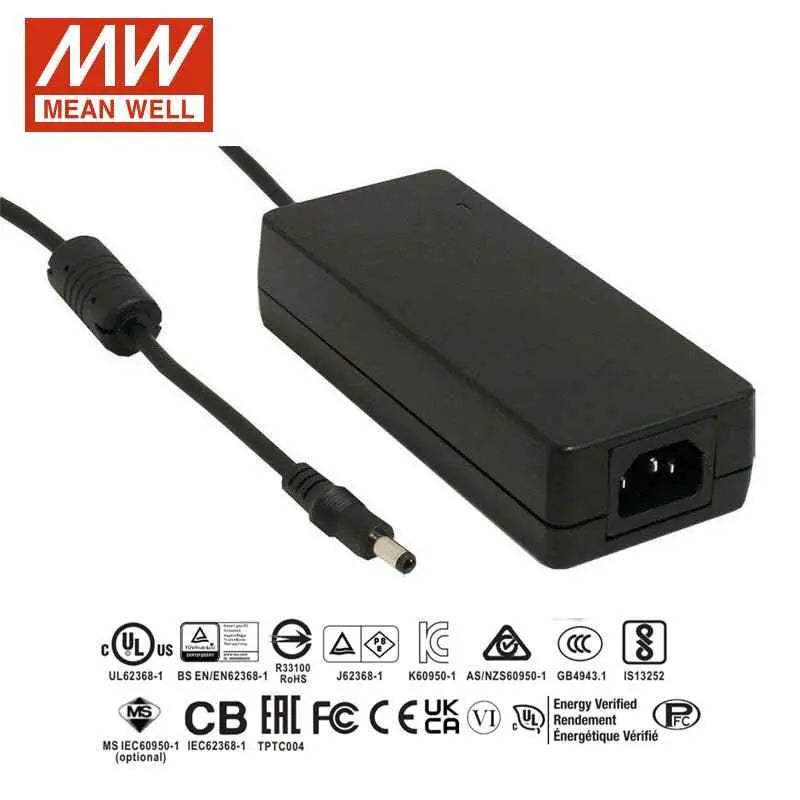

The MEAN WELL GST120A20-P1M is a AC/DC adapter delivering 20V at up to 6A (120W rated). It is designed for consumer and industrial electronics, telecom and networking equipment, test instruments and other devices that need an external DC supply.

Key features

  • Output: 20V, 6A rated
  • Input: 85–264VAC / 120–370VDC
  • Protections: overload, over voltage, over temperature
  • Typical efficiency 89%

Specifications

Model GST120A20-P1M
Series GST120A
Output 20V / 6A
Rated power 120W
Input 85–264VAC / 120–370VDC
Efficiency (typ.) 89%
Working temperature -30 to +70°C (-22 to 158°F)
Dimensions 167 × 67 × 35 mm (6.57 × 2.64 × 1.38 in)
Weight 0.575 kg

Typical applications: consumer and industrial electronics, telecom and networking equipment, test instruments and other devices that need an external DC supply.

Datasheet: GST120A series specification (PDF).
