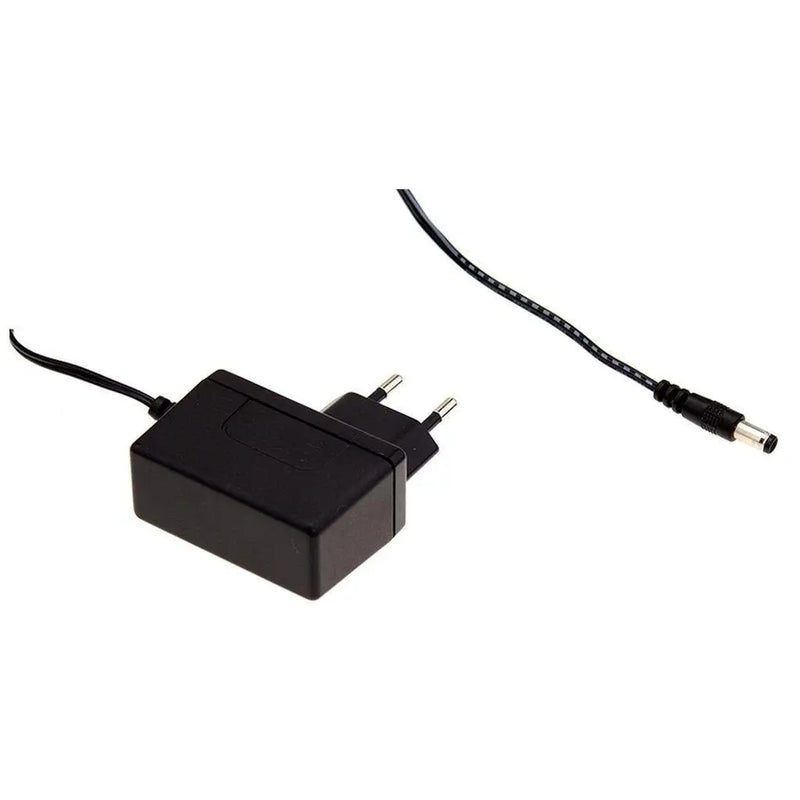

GSM12E15-P1J

Name: GSM12E15-P1J
Brand: MEAN WELL
Price: 17.24 USD
Availability: OutOfStock

$17.24

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$16.38

20+

$16.03

50+

$15.69

100+

$15.34

200+

$15.00

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

0.8A

Power Rating

12W

Waterproof

Non-waterproof

Dimensions

2.44 x 1.56 x 1.07 in

Weight

0.22 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Energy efficiency level VI

Medical safety approved (2 x MOPP)

Extremely low leakage current

No load power consumption < 0.075W(<0.1W for 18V/48V)

High efficiency up to 87%

Class II power (without earth pin)

Protections: Short circuit / Overload / Over voltage

Fully enclosed plastic case

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	80~264VAC ; 113~370VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
Overload protection	110%~200% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P-O/P: 5656VDC
Working temperature	-20~+70°C
Safety standards	TUV EN60601-1,EN60601-1-11 approved
EMC standards	EN55011(CISPR11) class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2,EN55024,EN61204-3
Length of output cable	100cm of UL2468, 18AWG for 5~7.5V; 120cm of UL2468, 22AWG for 9V; 180cm of UL2468, 24AWG for 12V~48V
Dimension (LxWxH)	62.2 x 27.4 x 39.7mm
Standard DC plug	P1J: 2.1øx5.5øx11mm / C+, tuning fork type
packing	90pcs/10Kg
