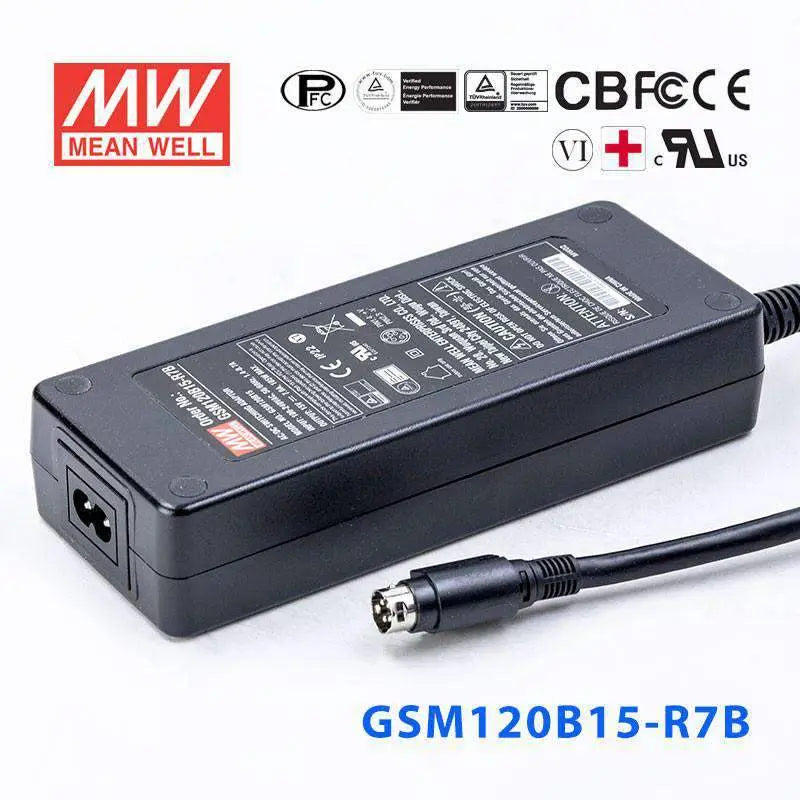

GSM120B15-R7B

Name: GSM120B15-R7B
Brand: MEAN WELL
Price: 53.38 USD
Availability: OutOfStock

$53.38

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$50.71

20+

$49.64

50+

$48.58

100+

$47.51

200+

$46.44

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

Power Rating

105W

Waterproof

Non-waterproof

Dimensions

6.88 x 2.83 x 1.37 in

Weight

1.45 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

2 pole AC inlet IEC320-C8

Medical safety approved (2 x MOPP between primary to secondary)

Low leakage current <100uA

No load power consumption < 0.15W

High efficiency up to 91.5%

Class II power (with earth pin)

Protections: Short circuit / Overload / Over voltage / Over temperature

Fully enclosed plastic case

LED indicator for power on

Energy efficiency level VI

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	80~264VAC ; 113~370VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
Overload protection	105%~160% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P-O/P: 4kVAC
Working temperature	-30~+60°C (refer to output derating curve )
Safety standards	ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved
EMC standards	EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2
Length of output cable	100cm of UL2464, 16AWG for 12V ; 120cm of UL2464, 18AWG for 15~48V
Dimension (LxWxH)	167x 67x 35 mm
Standard DC plug	R7B: Power DIN 4P with lock type
