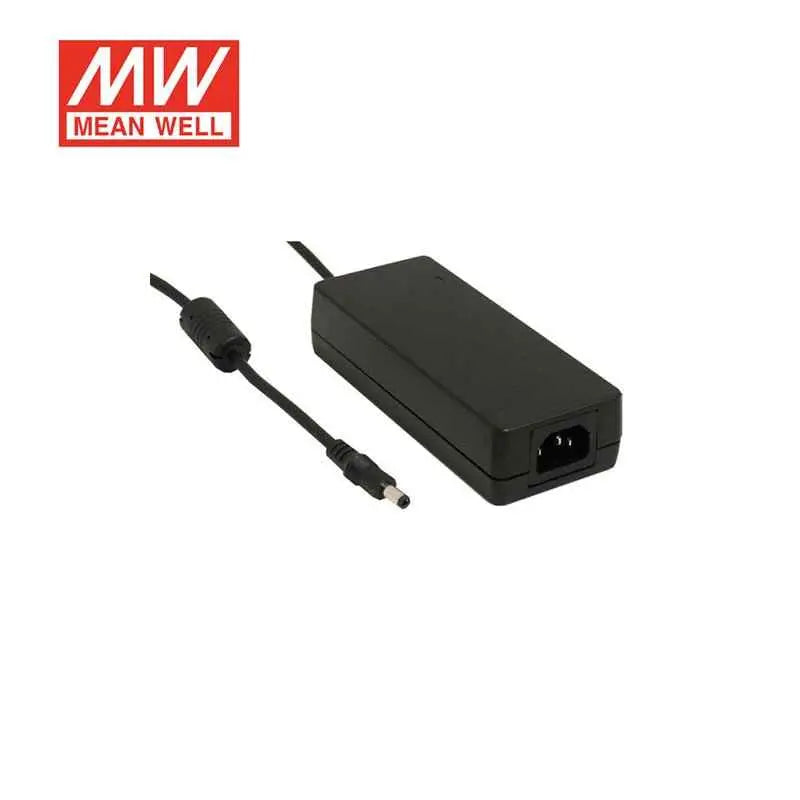

GS90A15-P1M

Name: GS90A15-P1M
Brand: MEAN WELL
Price: 17.32 USD
Availability: OutOfStock

$17.32

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$16.45

20+

$16.11

50+

$15.76

100+

$15.41

200+

$15.07

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

Power Rating

90W

Waterproof

Non-waterproof

Dimensions

5.70 x 2.36 x 1.25 in

Weight

0.99 lbs

Features

Universal AC input / Full range

No load power consumption<0.5W

Energy efficiency Level V

Comply with EISA 2007, NRCan, AU/NZ MEPS and EU ErP

3 pole AC inlet IEC320-C14

Class I power (without earth pin)

Protections: Short circuit / Overload / Over voltage / Over Temperature

Pass LPS

Fully enclosed plastic case

LED indicator for power on

2 years warranty

General Specification

Line regulation (max.)	± 1.0%
Load regulation (max.)	± 5.0%
Overload protection Range	110 ~ 150% rated output power
Overload protection Type	Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:4242VDC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-30 ~ +50 ℃ (Refer to "Derating Curve")
Safety standards	UL60950-1, CSA C22.2, TUV EN60950-1 , CCC GB4943 approved
Dimension (LxWxH) (mm)	1456032mm (LWH)
Packing	0.45Kg; 30pcs/14.05Kg/1CUFT
