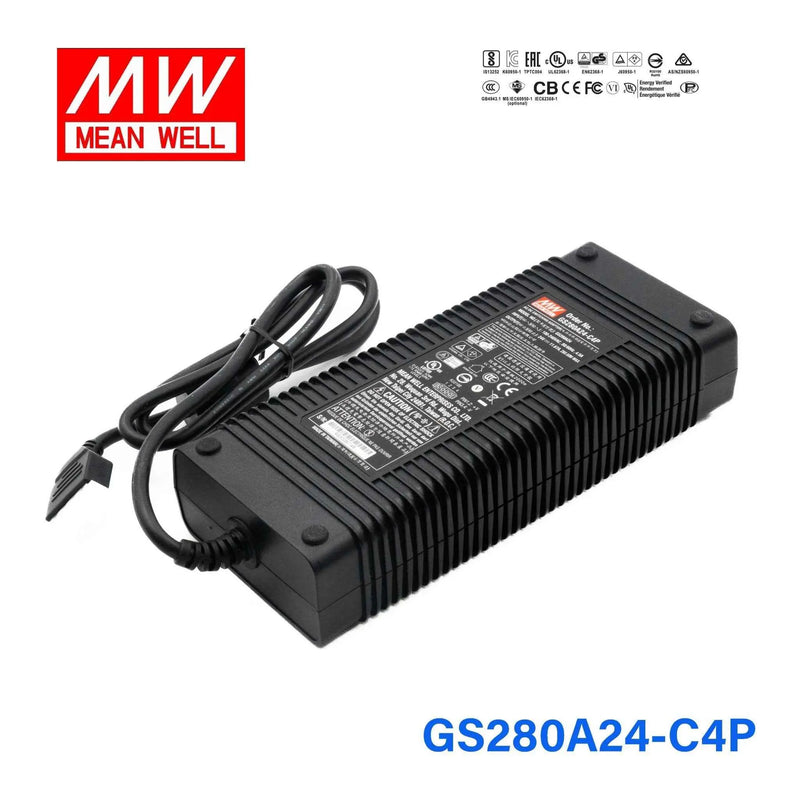

GS280A24-C4P

Name: GS280A24-C4P
Brand: MEAN WELL
Price: 47.89 USD
Availability: OutOfStock

$47.89

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$45.50

20+

$44.54

50+

$43.58

100+

$42.62

200+

$41.66

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

11.67A

Power Rating

280.08W

Waterproof

Non-waterproof

Dimensions

8.66 x 3.74 x 1.81 in

Weight

2.75 lbs

Features

Universal AC input / Full range

3 pole AC inlet IEC320-C14

Fanless design, cooling by free air convection

Protections: Short circuit / Overload / Over voltage / Over Temperature

Fully enclosed plastic case

Approvals: UL/ CUL / PSE / TUV / BSMI / CCC / CB / FCC / CE

Class I power (with earth pin)

Pass LPS

LED indicator for power on

No load power consumption<0.5W

ErP step2 compliant (level V)

NRCan compiant

MEPS compiant

Meet EISA 2007 (Energy Independence and Security Act)

2 years warranty

General Specification

Line regulation (max.)	± 1.0%
Load regulation (max.)	± 3.0%
Overload protection Range	105 ~ 135% rated output power
Overload protection Type	Hiccup mode, recovers automatically after fault condition is removed
Over-voltage protection	Shut down o/p voltage, re-power on to recov er
Withstand voltage	I/P-O/P: 3KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature	-30 ~ +60 ℃ (Refer to "Derating Curve")
Safety standards	UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, approved
Dimension (LxWxH) (mm)	2209546mm (LWH)
Packing	1.25Kg; 12pcs/16Kg/1.27CUFT
