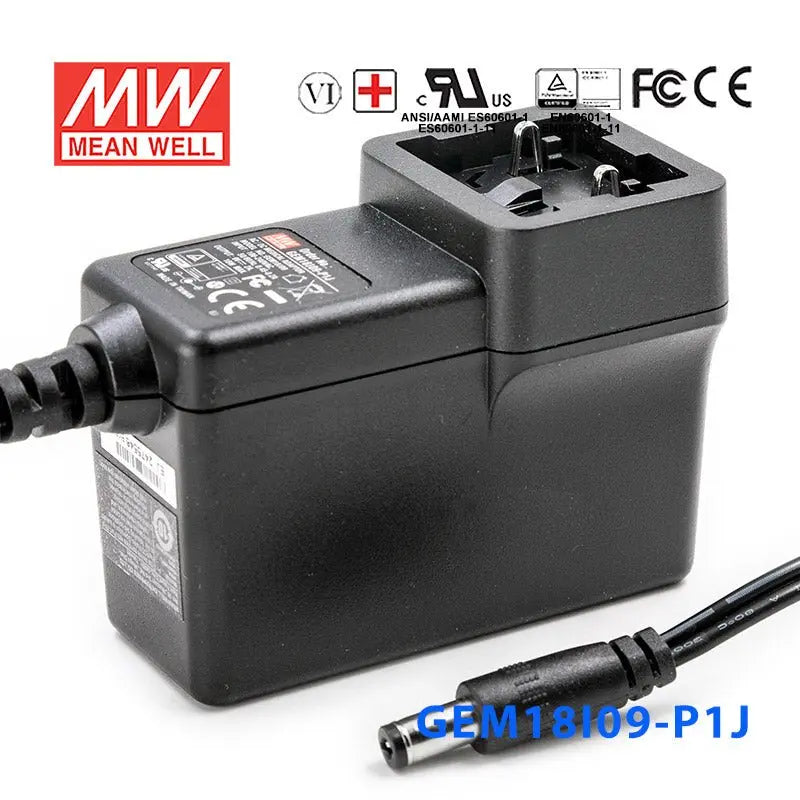

GEM18I09-P1J

Name: GEM18I09-P1J
Brand: MEAN WELL
Price: 16.68 USD
Availability: OutOfStock

$16.68

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$15.85

20+

$15.51

50+

$15.18

100+

$14.85

200+

$14.51

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

18W

Waterproof

Non-waterproof

Dimensions

2.97 x 2.21 x 1.53 in

Weight

0.30 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Interchangeable AC plugs (plug kit sold separately)

Medical safety approved(2 xMOPP) according to 60601-1

Extremely low leakage current

No-load power consumption <0.075W

Energy efficiency Level VI

-20 ~ +50°C wide range working temperature

Class II power (without earth pin)

Protections: Short circuit/ Overload/ Over voltage

Fully enclosed plastic case

3 years warranty

General Specification

AC input voltage range	80~264VAC
AC inrush current (max.)	Cold start, 15A at 115VAC; 30A at 230VAC
Setup, rise, hold up time	500ms, 30ms, 16ms at 230VAC input
Overload protection	105 ~ 160% rated output power; Hiccup mode, auto-recovery
Over-voltage protection	110%~140% rated output voltage
Withstand voltage	I/P-O/P:5656VDC
Working temperature	-20~+50°C (refer to output derating curve)
Safety standards	TUV BS EN/EN60601-1,ANSI/ AAMI ES60601-1(3.1 version), CAN/CSA-C22 NO. 60601-1 3 edition, EAC TP TC 004 approved
EMC standards	EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Length of output cable	UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V
Dimension (LxWxH)	75.5x 39.1x 56.2 mm
Standard DC plug	P1J: 2.1ID x 5.5OD x 11L, tuning fork type
