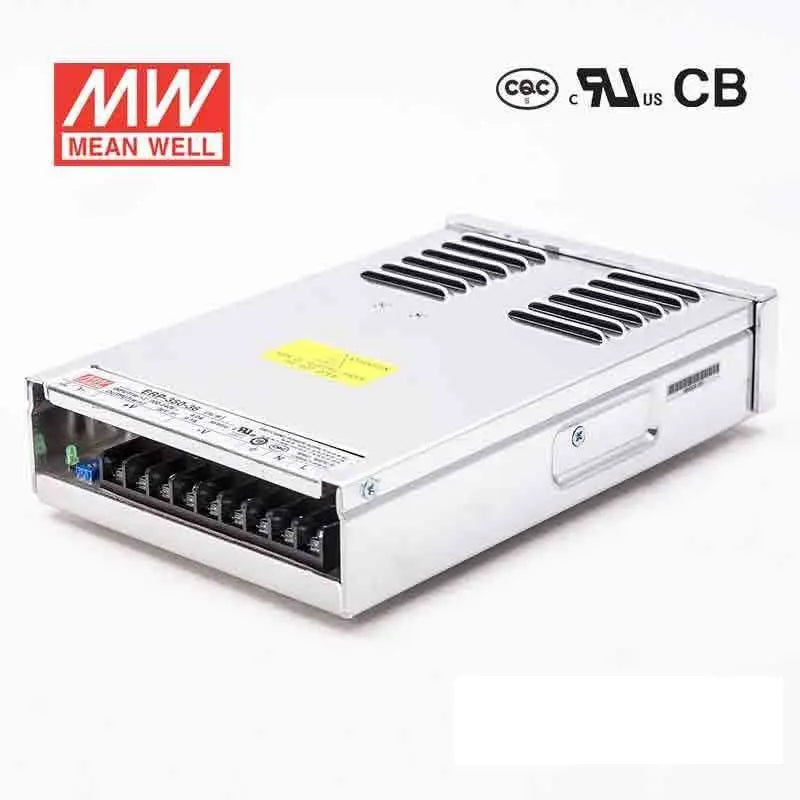

ERP-350-12 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

ERP-350-48

Availability: Out of stock
350 W48 V7.3 A180V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

ERP-350-48
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$42.57 USD
10+
$40.44 USD
20+
$39.59 USD
50+
$38.74 USD
100+
$37.89 USD
200+
$37.04 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
180V~264V
Output Voltage
48V
Rated Current
7.3A
Power Rating
350W
Waterproof
Non-waterproof
Dimensions & Weight
8.67 x 5.11 x 1.88 in1.98 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

AC input 180~264VAC
Withstand 300VAC surge input for 5 seconds
Design against rain splash
Protections: Short circuit / Overload /Over voltage/Over temperature
Cooling by free air convection
LED indicator for power on
Low cost,high reliability
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 180~264VAC ; 254~370VDC
AC inrush current (max.) 90A/230VAC
Over temperature protection Shut down O/P voltage, recovers automatically after temperature goes down
Over voltage protection Protection type :Hiccup mode, recovers automatically after fault condition is removed
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -30~+60ÂșC (refer to output derating curve)
Safety standards UL60950-1,GB4943.1-2011(except for ERP-350-12) approved
EMC standards Refer to EN55022 (CISPR22) class A
Dimension (LxWxH)(mm) 220.4 x 130 x 48 mm

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
