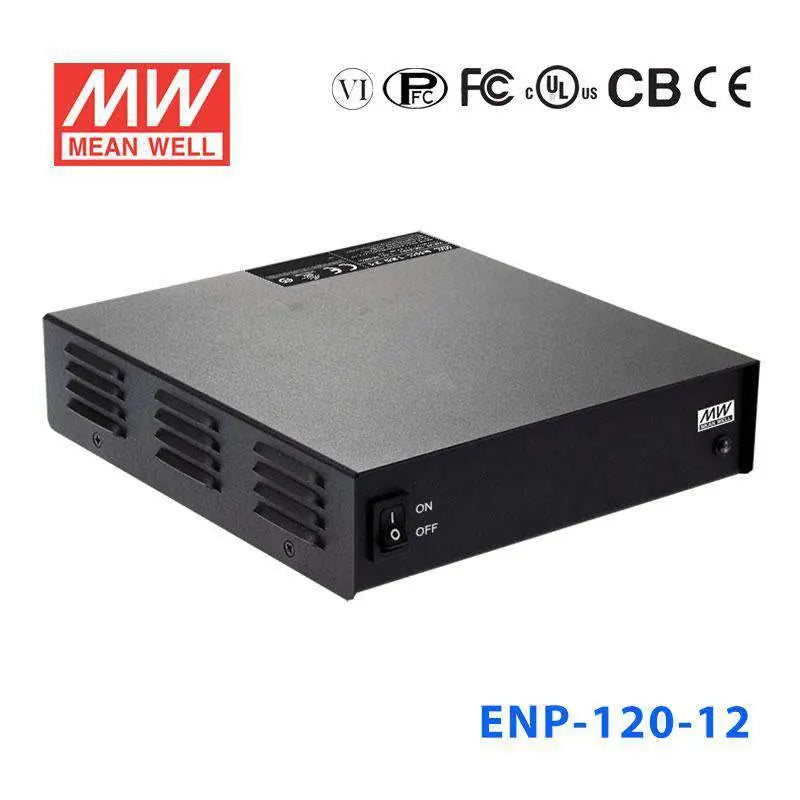

ENP-120-12

Name: ENP-120-12
Brand: MEAN WELL
Price: 60.68 USD
Availability: OutOfStock

$60.68

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$57.65

20+

$56.43

50+

$55.22

100+

$54.01

200+

$52.79

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

13.8V

Rated Current

8.7A

Power Rating

120W

Waterproof

Non-waterproof

Dimensions

7.55 x 7.00 x 1.79 in

Weight

2.16 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input/Full range

Built-in active PFC function

Energy efficiency Level VI

No load power consumption <0.15W

Comply with EISA 2007/DoE, NRCan, and EU Erp

125% peak load capability

Fanless design, cooling by free air convection

Protection: Short circuit/ Overload/ Over voltage/ Over temperature

3 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current (max.)	Cold start, 65A at 230VAC
Overload protection	110~125% Constant current limiting, auto-recovery
Over-voltage protection	112%~132% rated voltage
Setup, rise, hold up time	1000ms,100ms,20ms at full load
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70ºC
Safety standards	IEC62368-1, UL62368-1
EMC standards	EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) (mm)	192x178x45.5mm
Packing	10pcs/10.8Kg
