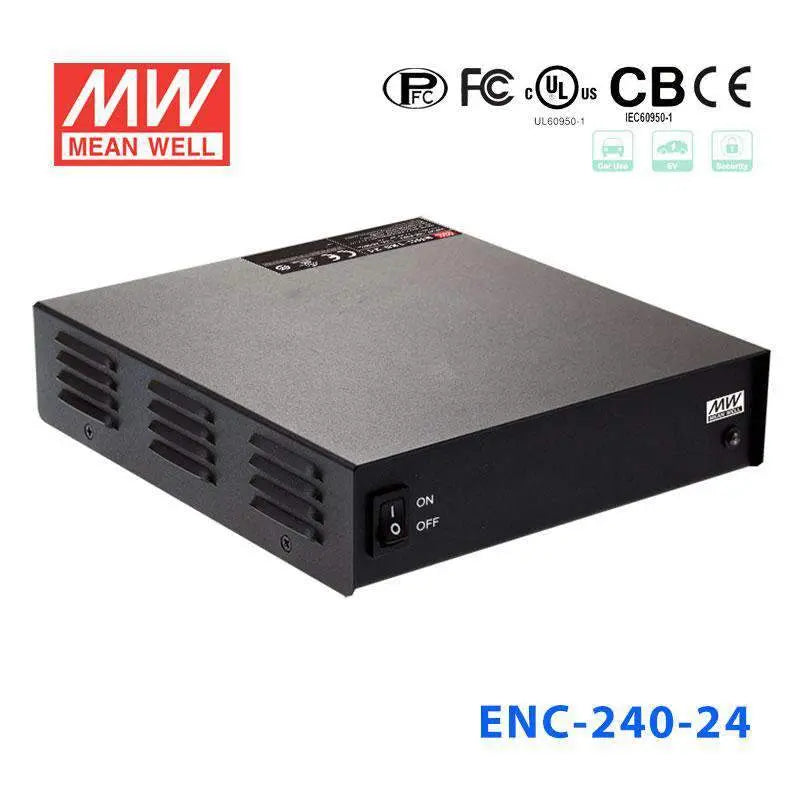

ENC-240-24

Name: ENC-240-24
Brand: MEAN WELL
Price: 131.4 USD
Availability: OutOfStock

$131.40

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$124.83

20+

$122.20

50+

$119.57

100+

$116.95

200+

$114.32

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

28.8V

Rated Current

Power Rating

240W

Waterproof

Non-waterproof

Dimensions

7.55 x 7.00 x 1.79 in

Weight

2.71 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Charger for lead-acid batteries(flooded, Gel and AGM) and li-ion batteries

Built-in 3-stage programmable charging curve

Universal AC input/Full range

Built-in active PFC function

Fanless design, cooling by free air convection

Built-in temperature compensation function

Protection: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery over voltage / Battery reverse polarity protection

3 years warranty

General Specification

AC input voltage range	90~264VAC 127~370VDC
AC inrush current (max.)	Cold start, 75A at 230VAC
Short circuit protection	Shut down O/P voltage, repower on to recover
Over-voltage protection	107%~126% rated voltage
Leakage current	<1mA
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-30~+70ºC
Safety standards	IEC62368-1, UL62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Meet BS EN/EN62368-1
EMC standards	EN55032 Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) (mm)	192x178x45.5mm
Packing	10pcs/13.3Kg
