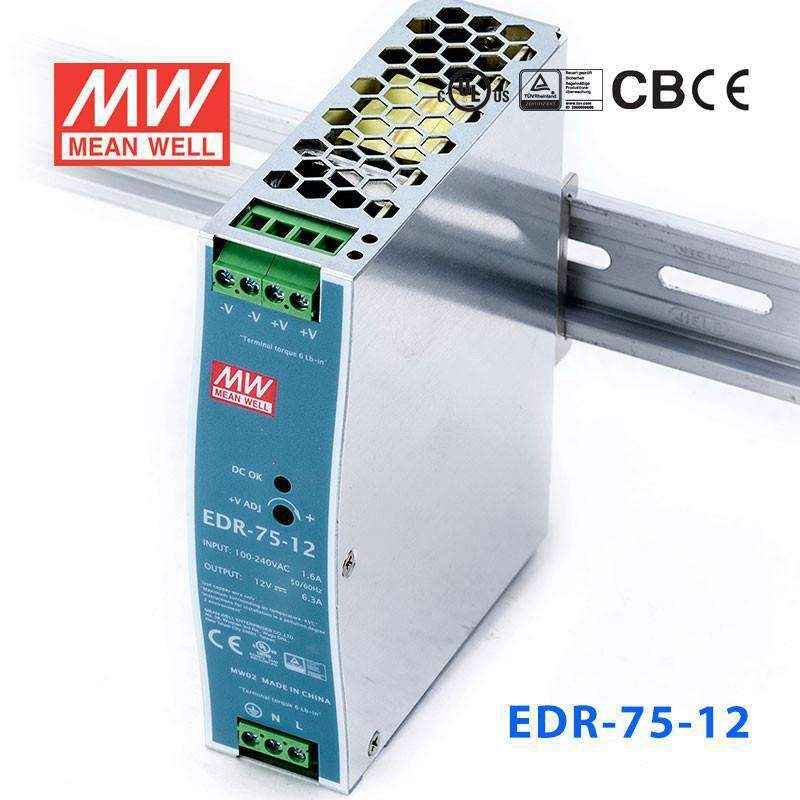

EDR-75-12

Name: EDR-75-12
Brand: MEAN WELL
SKU: 70366
Price: 25.49 USD
Availability: InStock

$25.49

Availability: ✔ 26 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$24.22

20+

$23.71

50+

$23.20

100+

$22.69

200+

$22.18

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

6.3A

Power Rating

75W

Waterproof

Non-waterproof

Dimensions

4.93 x 1.26 x 4.02 in

Weight

0.51 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

The EDR-75-12 is a compact 75W industrial DIN rail power supply designed for automation systems, control panels, machinery, and industrial equipment requiring reliable DC power. The unit features a slim metal housing optimized for DIN rail installation and supports a universal AC input range of 90–264VAC. Designed with high efficiency and natural air convection cooling, it provides stable 12VDC output performance while minimizing heat generation. The power supply includes comprehensive protection features such as short circuit, overload, overvoltage, and overtemperature protection for dependable long-term operation. Its rugged design and wide operating temperature range make it suitable for harsh industrial environments.

General Specifications

Parameter	Specification
Model	EDR-75-12
Series	EDR-75
Power Rating	75W
Output Voltage	12VDC
Rated Current	6.3A
Input Voltage Range	90–264VAC
Input Frequency	47–63Hz
Efficiency (Typical)	87%
No. of Outputs	1
Operation Mode	Constant Voltage
Operating Temperature	-20°C to +60°C
Cooling Method	Free Air Convection
Mounting	DIN Rail TS-35/7.5 or TS-35/15
Dimensions	32 × 125.2 × 102mm
Weight	0.51kg
Certifications	UL, TUV, EAC, CE, CB
Protection	Short Circuit / Overload / Over Voltage / Over Temperature
