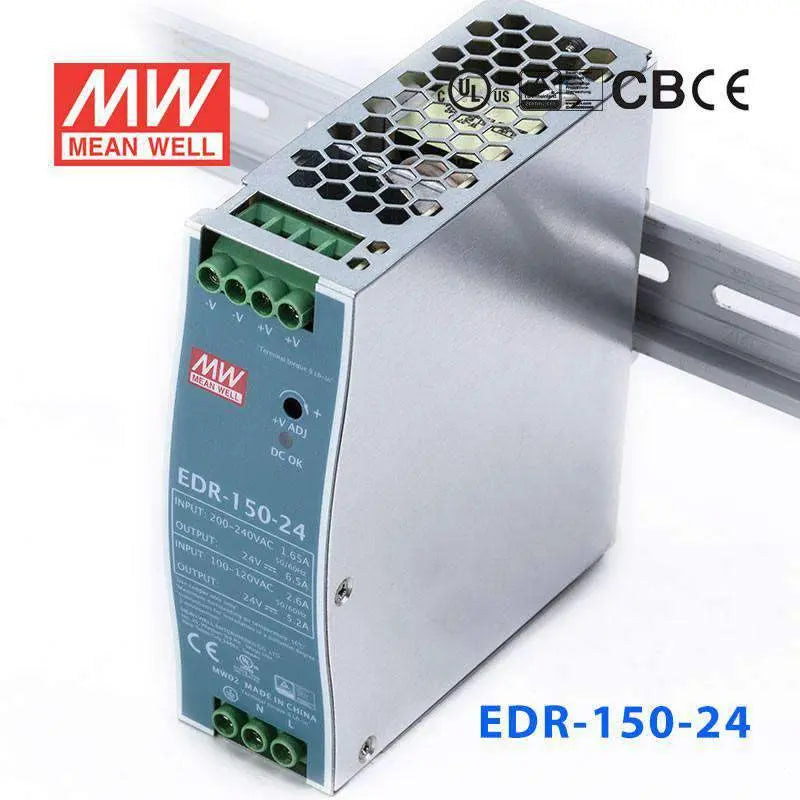

EDR-150-24

Name: EDR-150-24
Brand: MEAN WELL
Price: 31.67 USD
Availability: OutOfStock

$31.67

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$30.09

20+

$29.45

50+

$28.82

100+

$28.19

200+

$27.55

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

6.5A

Power Rating

156W

Waterproof

Non-waterproof

Dimensions

4.92 x 4.46 x 1.57 in

Weight

1.32 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Can be installed on DIN rail TS-35 / 7.5 or 15

UL508 (industrial control equipment) listed

EN61000-6-2 (EN50082-2) industrial immunity level

100% full load burn-in test

Low cost

2 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
Current adjustment range	10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection	105%~130% rated output voltage
Over voltage protection	110%~140% rated output voltage,recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+60°C (refer to output derating curve )
Safety standards	UL508, TUV EN60950-1 approved
EMC standards	EN55022(CISPR22) classA, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2),EN55024
Connection (screw DIN terminal)	I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)	40x 125.2x 113.5
