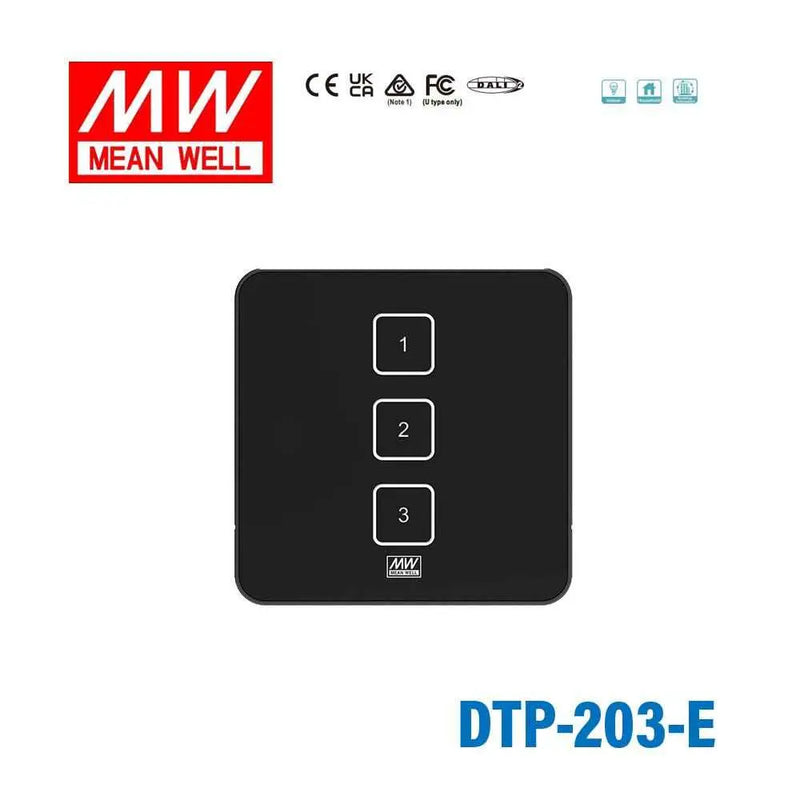

DTP-203-E

Name: DTP-203-E
Price: 88.41 USD
Availability: OutOfStock

$88.41

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$83.99

20+

$82.22

50+

$80.45

100+

$78.68

200+

$76.92

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Rated Current

0.00A

Power Rating

0.5W

Waterproof

Non-waterproof

Dimensions

3.38 x 3.38 x 1.04 in

Weight

0.28 lbs

Features:
⦁ DALI-2 certified touch panel
⦁ Compliant with IEC-62386-301 push button
⦁ Compliant with IEC-62386-332 feedback
⦁ Compatible for DALI-2 controllers
⦁ Powered by DALI Bus
⦁ Configurable functionality via MEAN WELL DLC-02 software
⦁ Each button can trigger multiple modes:
⦁ Short Click/Double Click/Long Press, to trigger scene or grouping functions
⦁ Backlight brightness adjustable
⦁ Touch panel volume adjustable
⦁ 5 years warranty
General Specification:
Input Voltage
DALI bus 9.5V~22.5V DC according to IEC62386 regulation
Current Consumption
Typ. Current <4mA (at 16V) Inrush Current <10mA
Protocol
DALI-2
DALI Standard
IEC62386-101, 103, 301, 332
Button Event
Short click, Double click, Long press
Backlight
Three adjustable levels: high brightness, low brightness, and off
Volume
Optional to turn on or off
Operating Temperature
-20 - +50 °C
Safety standards
BS EN/EN61347-1; BS EN/EN61347-2-11
Dimension (LxWxH)
86 x 86 x 26.5mm
