DRS-240-48

Name: DRS-240-48
Brand: MEAN WELL
SKU: 025-349
Price: 184.49 USD
Availability: InStock

$184.49

Availability: ✔ 8 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$175.27

20+

$171.58

50+

$167.89

100+

$164.20

200+

$160.51

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

Power Rating

240W

Waterproof

Non-waterproof

Dimensions

5.09 x 3.37 x 4.93 in

Weight

1.67 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

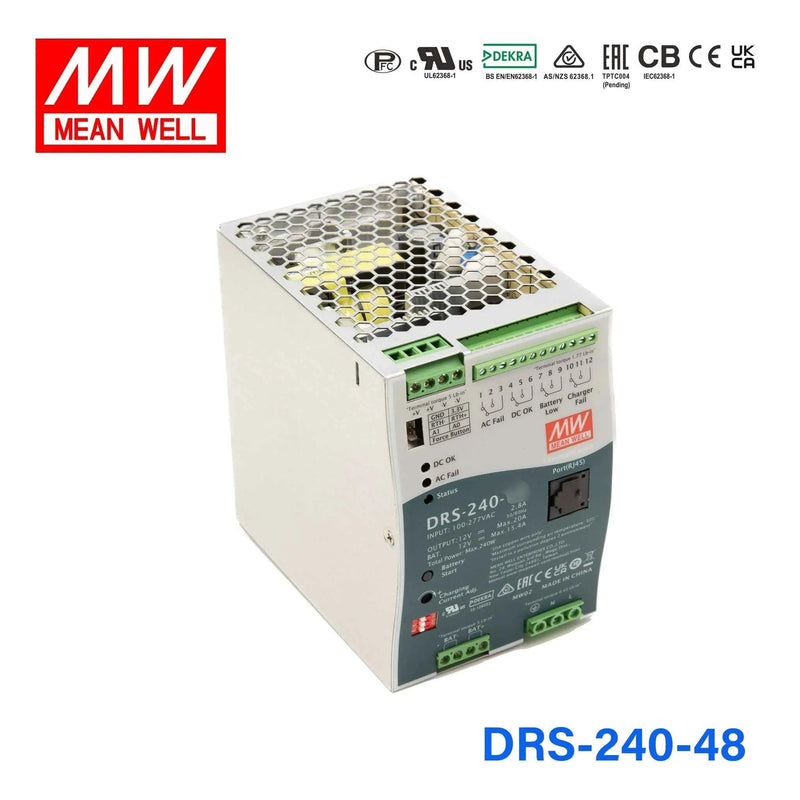

The DRS-240-48 is a 240W all-in-one intelligent DIN rail power supply engineered for industrial automation, security systems, and backup applications requiring reliable and continuous power operation. This compact unit integrates a power supply, DC-UPS function, battery charger, and monitoring system into a single DIN rail solution. It supports a universal 90–305VAC input range and includes advanced functions such as adjustable charging current, selectable 2-stage or 3-stage battery charging modes, load-based high-speed battery charging, integrated communication capability, and multiple relay outputs for system status monitoring. Comprehensive protection features including short circuit, overload, overvoltage, overtemperature, battery reverse polarity, and battery cut-off protection ensure stable performance in demanding environments. The fanless design uses natural air convection cooling for dependable long-term operation.

General Specifications

Parameter	Specification
Model	DRS-240-48
Series	DRS-240
Power Rating	240W
Output Voltage	48VDC
Rated Current	5A
Input Voltage Range	90–305VAC
Input Frequency	47–63Hz
Efficiency (Typical)	93%
No. of Outputs	1
Operation Mode	Constant Voltage
Operating Temperature	−30°C to +70°C
Cooling Method	Free Air Convection
Mounting	DIN Rail TS-35/7.5 or TS-35/15
Dimensions	129.2 × 85.5 × 125.2mm
Weight	1.67kg
Certifications	UL, TUV, EAC, CE, CB
Protection	Short Circuit / Overload / Over Voltage / Over Temperature
