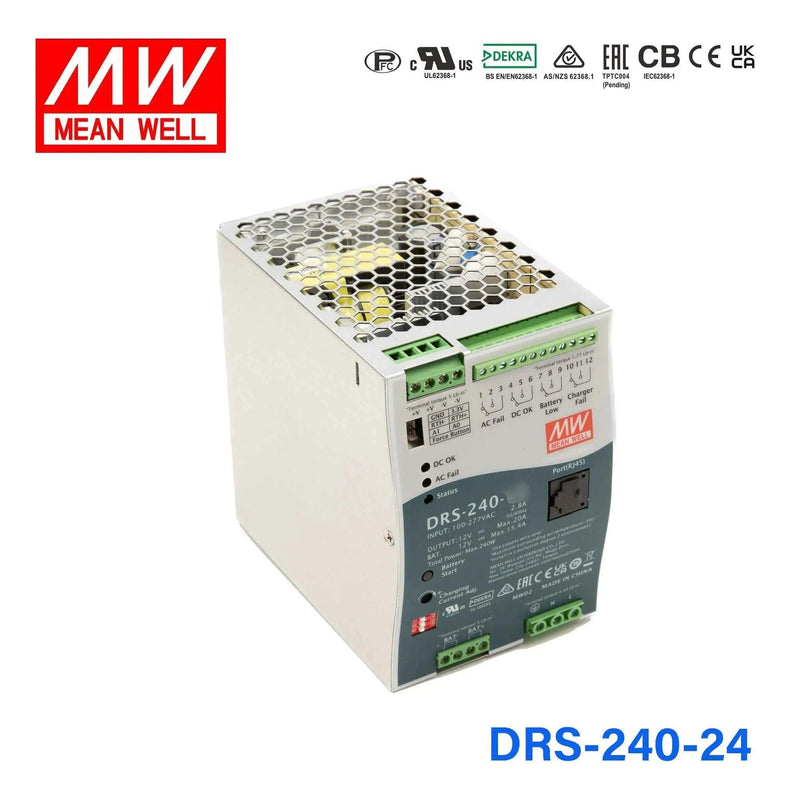

DRS-240-24

Name: DRS-240-24
Brand: MEAN WELL
SKU: 025-614
Price: 185.14 USD
Availability: InStock

$185.14

Availability: ✔ 8 can ship immediately

ℹ️ Lead time for quantities greater than shown, contact us

Place your order within --:--:-- to ensure shipment Today

Quantity Prices

Quantity

Unit Price

10+

$175.88

20+

$172.18

50+

$168.48

100+

$164.77

200+

$161.07

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

10A

Power Rating

240W

Waterproof

Non-waterproof

Dimensions

5.09 x 3.37 x 4.93 in

Weight

1.67 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

The DRS-240-24 is a 240W all-in-one intelligent DIN rail power supply designed for security systems, industrial automation, and backup applications requiring continuous operation. It combines a power supply, DC-UPS function, battery charger, and monitoring system into a compact unit. The device supports a universal input range of 90–305VAC and includes advanced features such as adjustable charging current, selectable 2-stage or 3-stage charging modes, load-dependent high-speed battery charging, built-in MODBus communication (CANBus optional), and multiple relay alarm outputs for AC fail, battery low, charger fail, and DC-OK conditions. The unit incorporates comprehensive protection functions including short circuit, overload, overvoltage, overtemperature, battery reverse polarity, and battery cut-off protection. Designed for industrial environments, it supports DIN rail mounting and operates in temperatures from −30°C to +70°C using natural air convection cooling.

General Specifications

Parameter	Specification
Model	DRS-240-24
Series	DRS-240
Power Rating	240 W
Output Voltage	24 VDC
Output Current	10 A
Input Voltage Range	90–305 VAC / 127–431 VDC
Input Frequency	47–63 Hz
Efficiency (Typical)	92%
Power Factor	>0.95 @ 230VAC
Inrush Current	30A @115VAC / 60A @230VAC
Battery Charger Current	Adjustable (20–100%)
Battery Charging Mode	Selectable 2-stage or 3-stage
DC-UPS Transfer Time	<10 ms
Operating Temperature	−30°C to +70°C
Cooling Method	Free air convection
Mounting	DIN Rail TS-35/7.5 or TS-35/15
Dimensions (L × W × H)	129.2 × 85.5 × 125.2 mm
Protections	Short circuit, overload, overvoltage, overtemperature, battery reverse polarity, battery cut-off
Alarm Outputs	AC Fail, Battery Low, Charger Fail, DC-OK
Certifications	CE, CB, cURus, EAC, UKCA
Communication	Built-in MODBus (CANBus optional)
