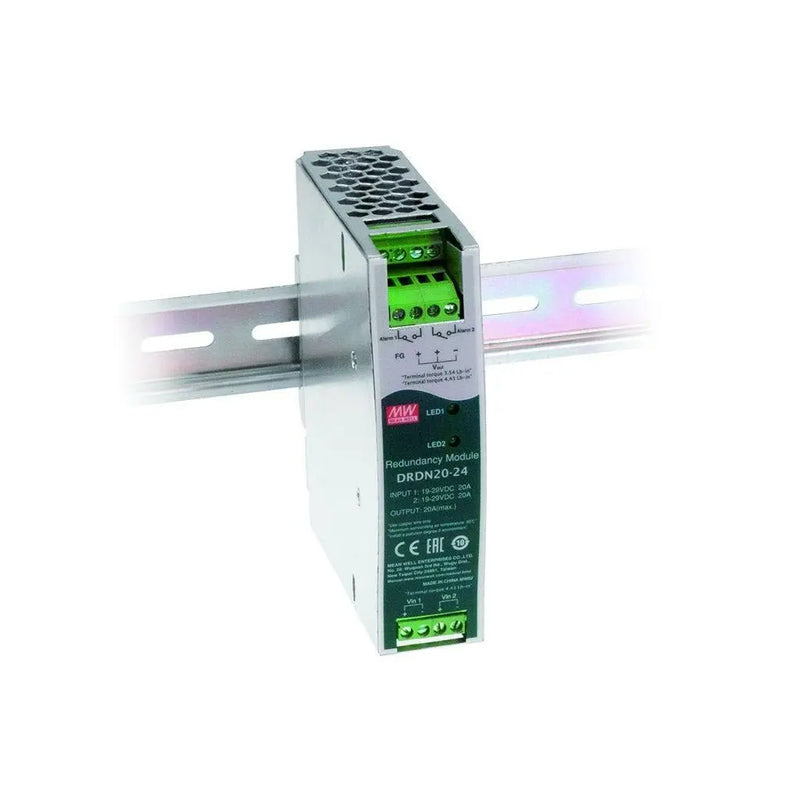

DRDN20-24

Name: DRDN20-24
Brand: MEAN WELL
SKU: 026-560
Price: 21.17 USD
Availability: OutOfStock

$21.17

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$20.11

20+

$19.69

50+

$19.26

100+

$18.84

200+

$18.42

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

20A

Power Rating

480W

Waterproof

Non-waterproof

Dimensions

4.92 x 4.01 x 1.25 in

Weight

0.77 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Support 1+1 and N+1 redundancy system

2 channels input and 1 output

Suitable for redundancy operation of 12V/24V/48V system

Output current up to 20A

Cooling by free air convection

Built-in 2 channels DC Ok signal and alarm relay contact

3 years warranty

General Specification

DC input voltage	12-48V
Peak current	0-30A per input; 5 Sec
DC voltage range	12V: 9-14V; 24V: 19-29V; 48V: 36-60V
Overload protection	<30A, 5 Sec. No damage
Short circuit protection	<30A, 5 Sec. No damage
Number of Input	2
Withstand voltage	I/P-O/P - Chassis: 0.5KVac; I/P-O/P - Relay: 0.5KVac; Relay - Chassis: 0.5KVac;
Working temperature	-40~+80°C
DC OK signal	Relay contact
Safety standards	IEC62368-1, UL60950-1
EMC standards	EN55032 class B, EN61000-4-2,3,4,5,6,8,10
Connection	Screw terminal
Dimension (LxWxH)	32x125.2x102
Packing	28pcs / 10.8kg
