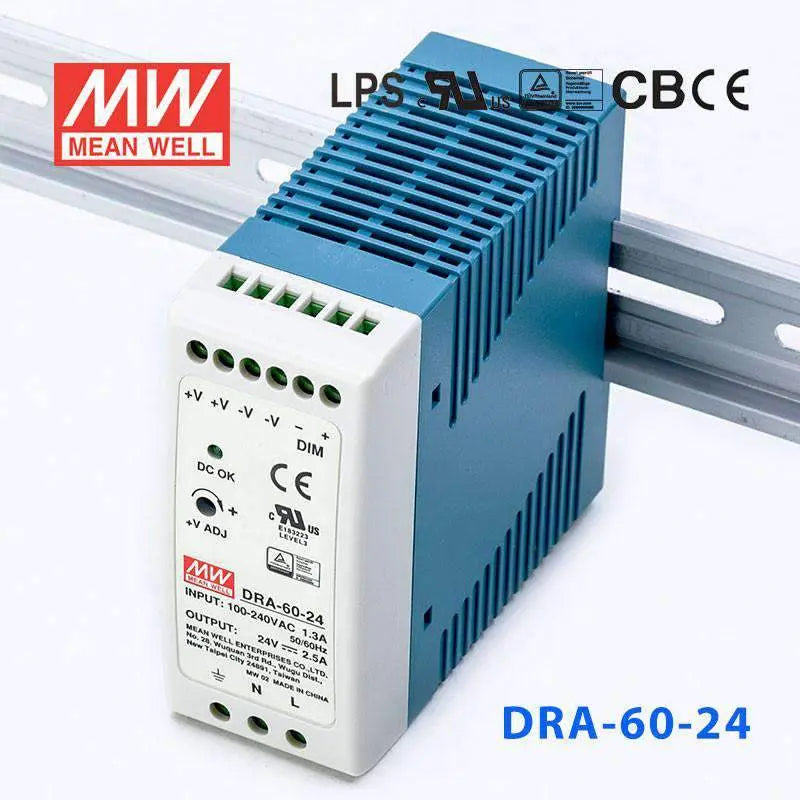

DRA-60-24

Name: DRA-60-24
Brand: MEAN WELL
Price: 29.11 USD
Availability: OutOfStock

$29.11

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$27.65

20+

$27.07

50+

$26.49

100+

$25.91

200+

$25.33

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

2.5A

Power Rating

60W

Waterproof

Non-waterproof

Dimensions

3.93 x 3.54 x 1.57 in

Weight

0.66 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Can be installed on DIN rail TS-35/7.5 or 15

Output Voltage adjustable through internal potentiometer

Protections: Short circuit / Overload /Over voltage

Output Current adjustable through external 1~10Vdc, PWM signal or resistance

Cooling by free air convection

Pass LPS

LED indicator for power on

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current (max.)	Cold start 30A/115VAC 60A/230VAC
Over voltage protection	Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-30~+70ºC (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm)	40 x 90 x 100 mm
