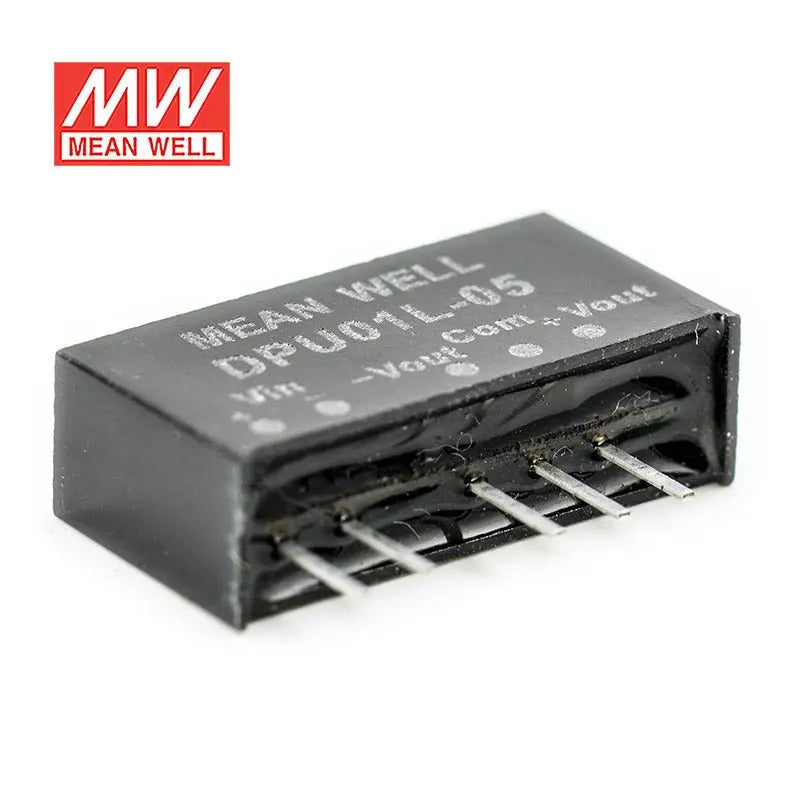

DPU01L-05

Name: DPU01L-05
Brand: MEAN WELL
Price: 2.17 USD
Availability: OutOfStock

$2.17

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$2.06

20+

$2.02

50+

$1.97

100+

$1.93

200+

$1.89

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

0.1A

Power Rating

Waterproof

Non-waterproof

Dimensions

0.77 x 0.40 x 0.27 in

Weight

0.00 lbs

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated
