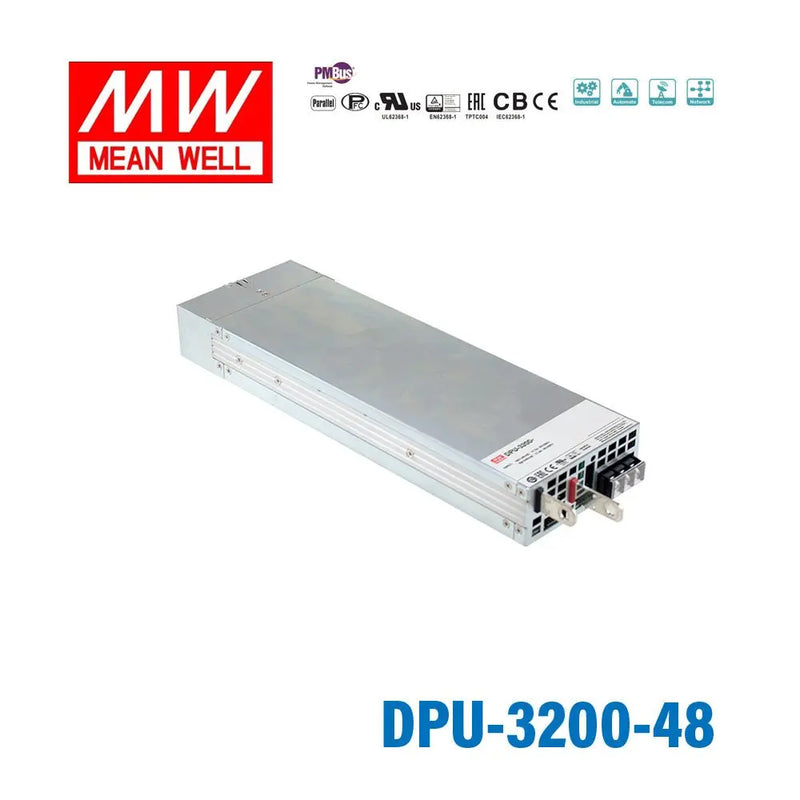

DPU-3200-48

Name: DPU-3200-48
Brand: MEAN WELL
Price: 618.78 USD
Availability: OutOfStock

$618.78

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$587.84

20+

$575.47

50+

$563.09

100+

$550.71

200+

$538.34

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

67A

Power Rating

3216W

Waterproof

Non-waterproof

Dimensions

12.82 x 4.21 x 1.61 in

Weight

6.08 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Built-in active PFC function

High efficiency up to 94.5%

Forced air cooling by built-in DC fan

Output voltage and constant current level programmable

Active current sharing up to 16000W (4+1)

Protections: Short circuit / Overload / Over voltage / Over temperature

Optional conformal coating

Optional PMBus or CANBus protocol

5 years warranty

General Specification

AC input voltage range	90~264VAC, 127~370VDC
AC inrush current (max.)	COLD START 55A/230VAC
DC adjustment range	±15% by potentiometer
Overload protection	105%~115%
Over-voltage protection	131%~156% rated output voltage, auto-recovery
Withstand voltage	I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 1.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, and Z axes
Safety standards	UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved
EMC standards	EN55032 class B, EN61000-3-2,3
Connection	Terminal block for input and output
Dimension (LxWxH)	325.810741mm
Case No.	256C
Packing	4pcs /12kg
