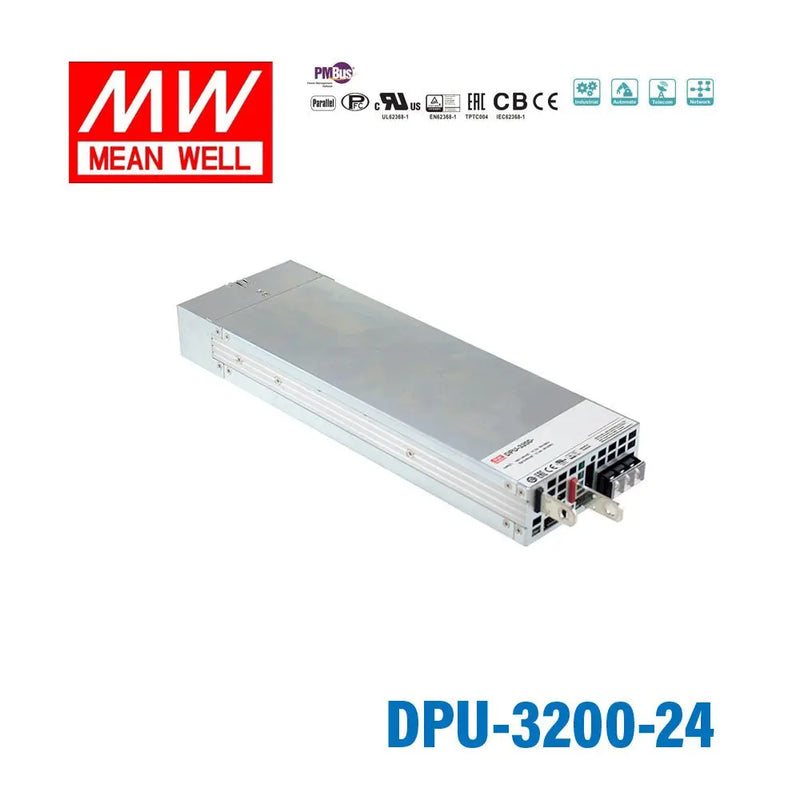

MEAN WELL DPU-3200-24 enclosed power supply
Manufacturer MEAN WELL

DPU-3200-24

Availability: Out of stock
3192 W24 V133 A90V–264V in

Request a Backorder

Submit your request and we will confirm lead time.

DPU-3200-24
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$618.78 USD
10+
$587.84 USD
20+
$575.47 USD
50+
$563.09 USD
100+
$550.71 USD
200+
$538.34 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
24V
Rated Current
133A
Power Rating
3192W
Waterproof
Non-waterproof
Dimensions & Weight
12.82 x 4.21 x 1.61 in6.08 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 94.5%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 16000W (4+1)
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
Optional PMBus or CANBus protocol
5 years warranty


General Specification

AC input voltage range 90~264VAC, 127~370VDC
AC inrush current (max.) COLD START 55A/230VAC
DC adjustment range ±15% by potentiometer
Overload protection 105%~115%
Over-voltage protection 131%~156% rated output voltage, auto-recovery
Withstand voltage I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 1.5KVAC
Working temperature -30~+70°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, and Z axes
Safety standards UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2,3
Connection Terminal block for input and output
Dimension (LxWxH) 325.8*107*41mm
Case No. 256C
Packing 4pcs /12kg

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
