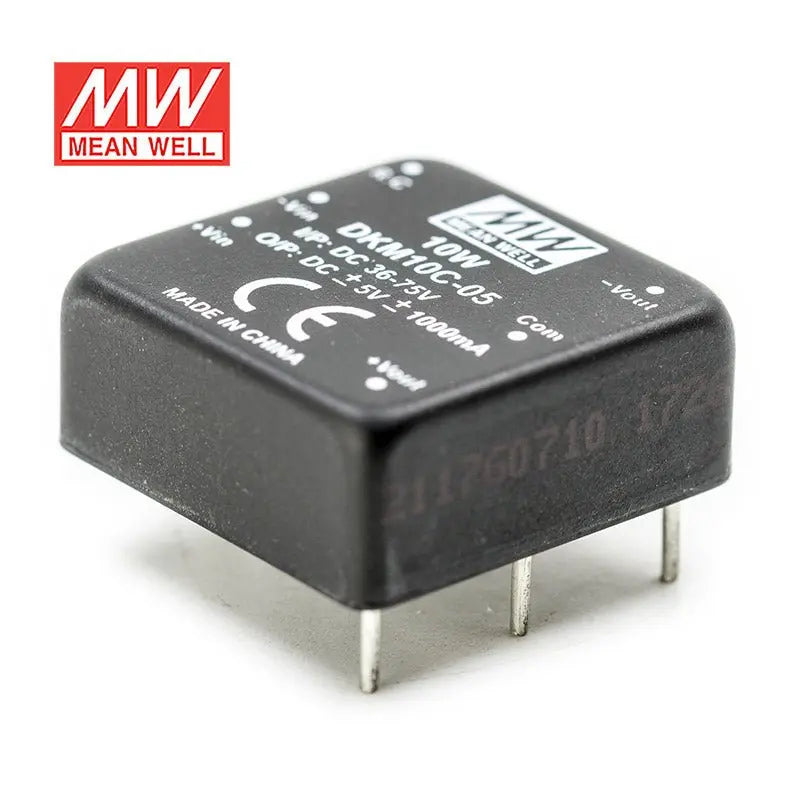

DKM10C-05

SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

• DIP 1"x1" package with industry standard pinout
• 2:1 wide input range
• Operating temperature range -40 ~ +85℃
• No minimum load required
• Comply to EN55032 radiated Class A without additional components
• High efficiency up to 90%
• Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
• 1.5KVDC I/O isolation
• Remote ON/OFF control and Triming output (±10%)
• 3 years warranty

Applications

• Telecom/datacom system
• Wireless network
• Industrial control facility
• Instrument
• Analyzer
• Detector
• Data switch
