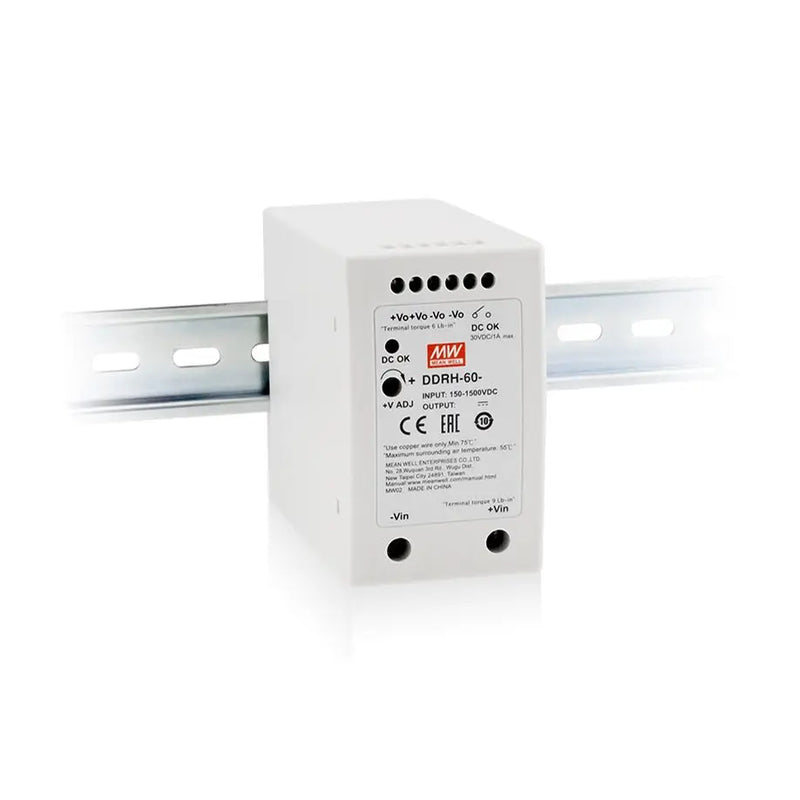

DDRH-60-24

$68.03
Availability: Out of stock
ℹ️ Lead time for quantities greater than shown, contact us
Quantity Prices
Quantity
Unit Price
10+
$64.63
20+
$63.27
50+
$61.91
100+
$60.55
200+
$59.19
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
24V
Rated Current
2.5A
Power Rating
60W
Waterproof
Non-waterproof
Dimensions
2.24 x 3.68 x 4.13 in
Weight
1.76 lbs

Features:

  • 150~1500Vdc 10:1 ultra-wide input range
  • 57mm slim width
  • 4KVac I/O high isolation(Reinforced isolation)
  • Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • -30 ~ +80℃ ultra-wide operating temperature (>+55℃ derating)
  • Over Voltage Category II
  • Operating altitude up to 5000 meters
  • DC OK relay contact
  • DC output voltage adjustable(+20%)
  • 3 years warranty

General Specification

AC input voltage range

150 1500Vdc

AC inrush current (max.)

COLD START 120A /1500Vdc | 80A/800Vdc | 30A/150Vdc

Over-voltage protection

6.6 8.4V | 16.5 21V | 30 38V | 55 60V

Protection type: Hiccup up mode, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:4KVAC O/P-DC OK:0.5KVAC

Working temperature

-30 ~ +80℃ (Refer to "Derating Curve")

Safety standards

IEC62109-1 approved; Design refer to UL1741(By request)

Dimension (LxWxH)

57x93.5x105mm
