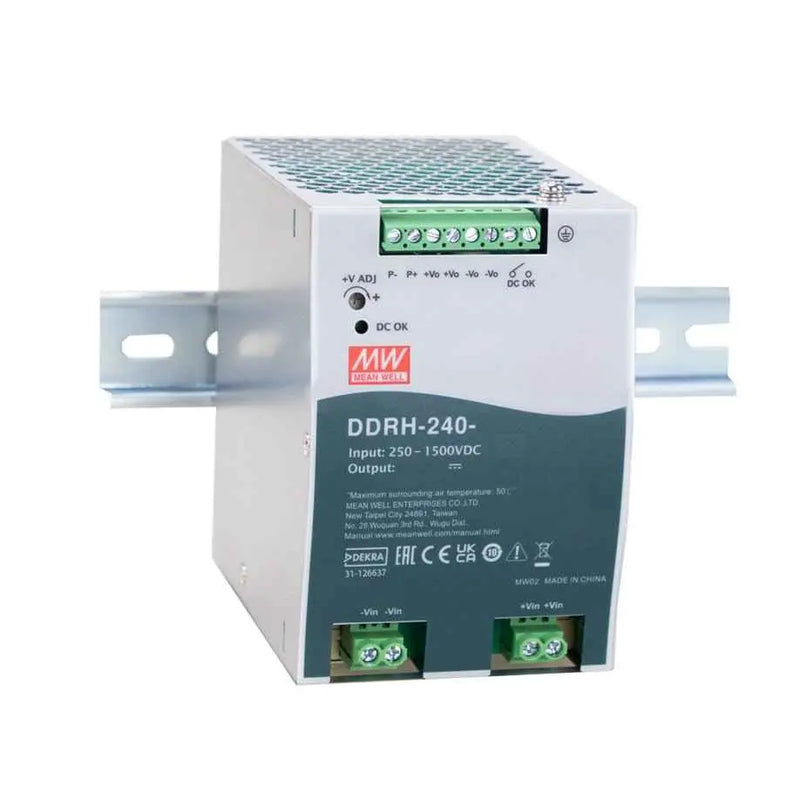

DDRH-240-12

$193.04
Availability: Out of stock
ℹ️ Lead time for quantities greater than shown, contact us
Quantity Prices
Quantity
Unit Price
10+
$183.39
20+
$179.53
50+
$175.67
100+
$171.81
200+
$167.94
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
12V
Rated Current
16.7A
Power Rating
200.4W
Waterproof
Non-waterproof
Dimensions
3.36 x 4.92 x 5.08 in
Weight
2.11 lbs

Features:

  • 250~1500Vdc 6:1 ultra-wide input range
  • Withstand 1700Vdc surge input for 10 seconds
  • 85.5mm slim width
  • 4KVac I/O high isolation(Reinforced isolation)
  • Protections: Short Circuit / Overload / Over voltage / DC input under voltage / DC input Reverse Polarity
  • Fanless design, Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • -40 ~ +80℃ ultra-wide operating temperature (>+50℃ derating)
  • Current sharing up to 960W(3+1)
  • Over Voltage Category II
  • Operating altitude up to 5000 meters
  • DC OK relay contact
  • DC output voltage adjustable(1215V, 2429V, 3036V, 4858V)
  • 3 years warranty

General Specification

AC input voltage range

250 ~ 1500Vdc

AC inrush current (max.)

COLD START 500A /1500Vdc | 300A/800Vdc | 120A/300Vdc

Over-voltage protection

16.5 21V | 32 42V | 40 48V | 62 70V

Protection type : Shut down o/p voltage, re-power on to recover

Withstand voltage

I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:2KVAC O/P-DC OK:0.5KVAC

Working temperature

-40 ~ +80℃ (Refer to "Derating Curve")

Safety standards

IEC62109-1 BS EN/EN62109-1 EAC TP TC 004 approved; Design refer to UL1741(By request)

Dimension (LxWxH)

85.5x125.2x129.2mm
