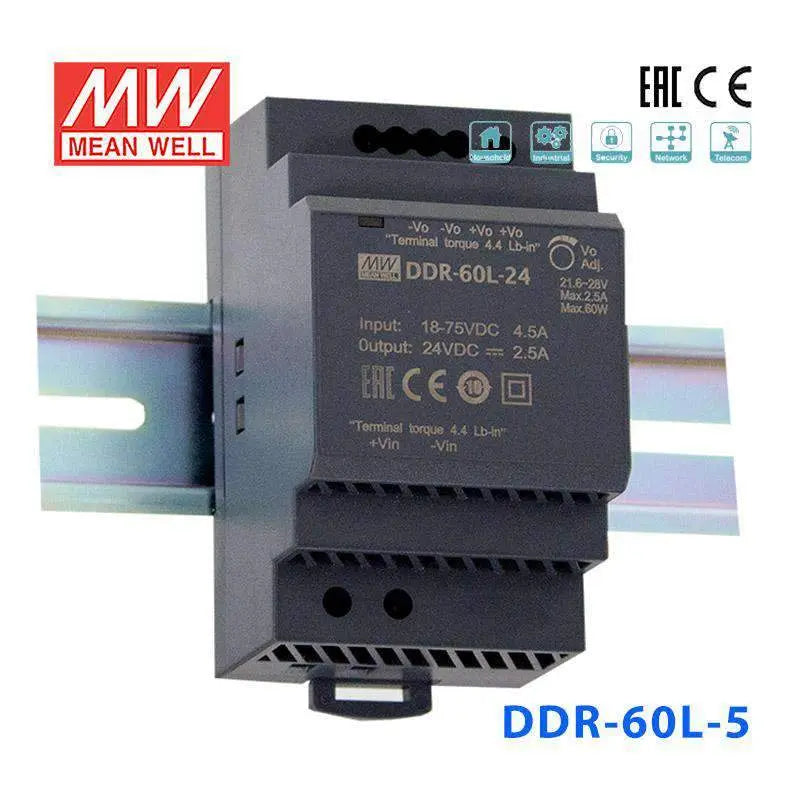

DDR-60L-5

Name: DDR-60L-5
Brand: MEAN WELL
Price: 32.54 USD
Availability: OutOfStock

$32.54

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$30.91

20+

$30.26

50+

$29.61

100+

$28.96

200+

$28.31

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

12A

Power Rating

60W

Waterproof

Non-waterproof

Dimensions

3.54 x 2.14 x 2.06 in

Weight

0.47 lbs

Features

Width only 52.5mm (3SU)

DC output adjustable ( 10%)

4:1 ultra wide input range

No minimum load required

Protections: Short circuit / Overload / Over voltage /Input reverse polarity / Input under voltage protection

4KVdc I/O isolation(Reinforced isolation)

Can be installed on DIN rail TS-35/7.5 or 15

-40~+85°C wide working temperature

Cooling by free air convection

3 years warranty

General Specification

Over current protection	110%~150% rated output power;Protection type:Constant current limiting, recovers automatically after fault condition is removed
Over voltage protection	5V:5.75~7V ; 12V:13.8~16.2V ; 15V:17.25~20.25V ; 24V:28.8~32.4V; Protection mode:Shut down o/p voltage, re-power on to recover
REVERSE POLARITY	By internal MOSFET, no damage, recovers automatically after fault condition removed
Withstand voltage	I/P-O/P:4KVDC
Working temperature	-40~+85°C (Refer to ""Derating Curve"")
Safety standards	IEC 62368-1 (LVD) approved, Design refer to UL508
EMC standards	With external components Compliance to EN55032 Class A for 1m I/O cable,Class B for 30cm I/O cable ;EN61000-3-,3，EN61000-4-2,3,4,5,6,8
Dimension (LxWxH)(mm)	52.5 x 90 x 54.5 mm
