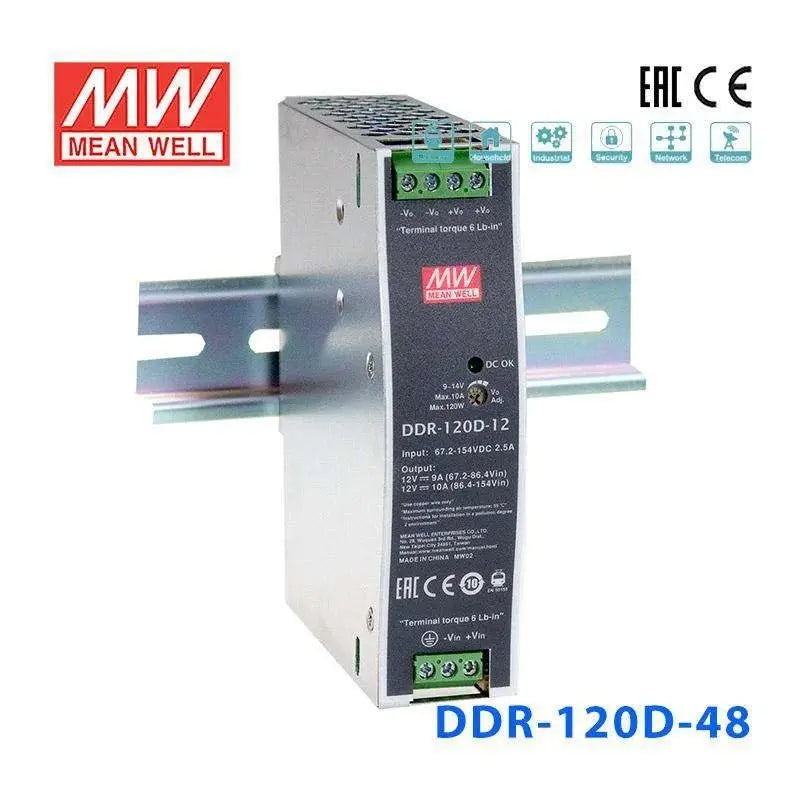

DDR-120D-48

Name: DDR-120D-48
Brand: MEAN WELL
SKU: 025-564
Price: 67.24 USD
Availability: OutOfStock

$67.24

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$63.88

20+

$62.53

50+

$61.19

100+

$59.84

200+

$58.50

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

2.5A

Power Rating

120W

Waterproof

Non-waterproof

Dimensions

4.92 x 4.01 x 1.25 in

Weight

1.12 lbs

Features

Width only 32mm

Compliance to EN50155 and EN45545-2 railway standard

DC output adjustable ( 10%)

2:1 wide input range

150% peak load capability

Protections: Short circuit / Overload / Over voltage /Input reverse polarity / Input under voltage protection

4KVdc I/O isolation(Reinforced isolation)

Can be installed on DIN rail TS-35/7.5 or 15

-40~+70°C wide working temperature

Cooling by free air convection

3 years warranty

General Specification

Over current protection	Normally works within 150% rated output power for more than 3 seconds and then constant current protection 105~135% rated output power with auto-recovery
Over voltage protection	12V:13.8~16.2V ; 15V:17.25~20.25V ; 24V:28.8~32.4V; Protection mode:Shut down o/p voltage, re-power on to recover
REVERSE POLARITY	By internal MOSFET, no damage, recovers automatically after fault condition removed
Withstand voltage	I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
Working temperature	-40~+70°C (Refer to ""Derating Curve"")
Safety standards	IEC 62368-1 (LVD),EAC TP TC 004 approved, Design refer to UL508
EMC standards	With external components Compliance to EN55032 Class B;EN61000-3-,3，EN61000-4-2,3,4,5,6,8
Dimension (LxWxH)(mm)	32 x 125.2 x 102 mm
