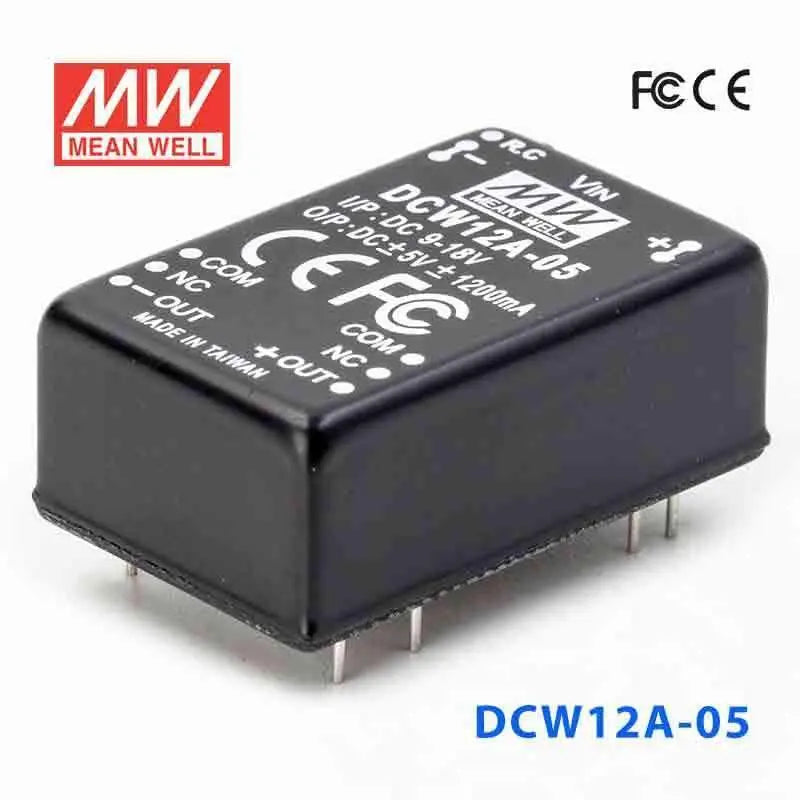

DCW12A-05

Name: DCW12A-05
Brand: MEAN WELL
Price: 9.21 USD
Availability: OutOfStock

$9.21

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$8.75

20+

$8.57

50+

$8.38

100+

$8.20

200+

$8.01

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

1.2A

Power Rating

12W

Waterproof

Non-waterproof

Dimensions

1.25 x 0.79 x 0.48 in

Weight

0.04 lbs

Features

2: 1 wide input range

1500VDC I / O isolation

Built-in remote ON/OFF control

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% ~ 180%, auto-recovery
Efficiency	80% - 80% - 81% \| 84% - 84% - 84% \| 83% - 84% - 83%
Short circuit protection	All output equipped with over current protection \| Protection type: Hiccup mode recovers automatically after fault condition is removed
I / O isolation voltage	I/P-O/P:1.5KVDC
I / O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
Isolation capacitance	2200pF max
Working temperature	-40 ~ + 71°C (refer to output derating curve)
Storage temperature	-40°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.05% / ℃ (0 ~ 50℃)
Dimension (LxWxH) (mm)	31.8 x 20.3 x 12.2mm or 1.25" x 0.80" x 0.48" inch
Case material	Five-sided shield metal case
