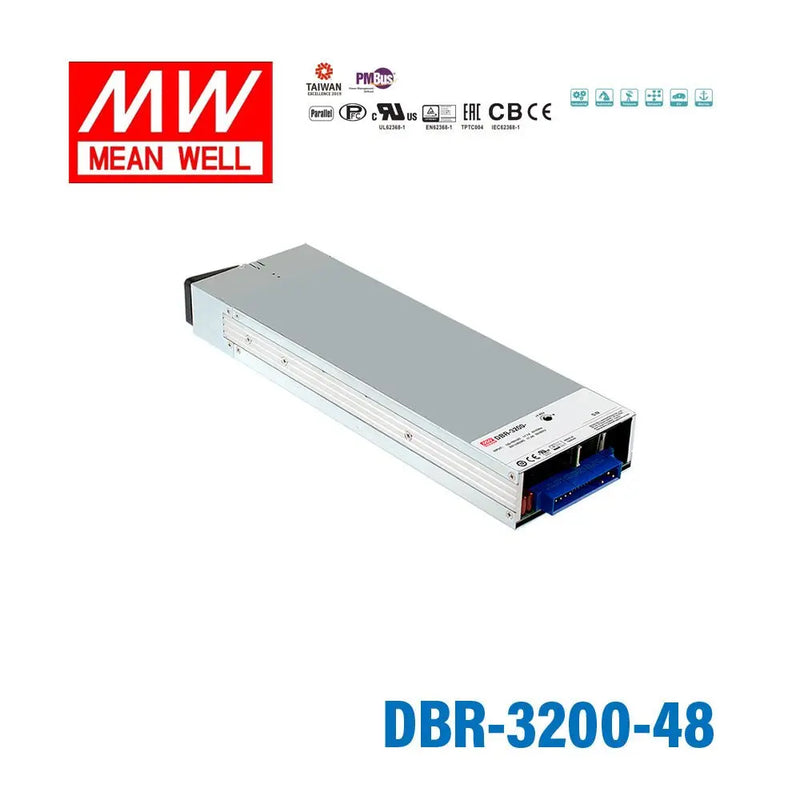

DBR-3200-48

Name: DBR-3200-48
Brand: MEAN WELL
Price: 764.76 USD
Availability: OutOfStock

$764.76

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$726.52

20+

$711.23

50+

$695.93

100+

$680.64

200+

$665.34

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

55A

Power Rating

3200W

Waterproof

Non-waterproof

Dimensions

12.79 x 4.21 x 1.61 in

Weight

5.84 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Charger for lead-acid batteries(Gel, flooded and AGM) and Li-ion batteries(lithium iron and lithium manganese)

Built-in default 3 stage charging curves and programmable curve

Built-in I²C interface, PMBus protocol(Optional CANBus protocol)

Universal AC input/Full range

Built-in active PFC function

Forced air cooling by built-in thermal controlled DC fans

Optional conformal coating

Built-in OR-ing FET, support hot swap(hot plug)

Active current sharing up to 12800W for one 19"" rack shelf

Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature

5 years warranty

General Specification

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current (max.)	COLD START 55A/230VAC
DC adjustment range	up to 125% rated output voltage
Leakage current from battery	<1.5mA / 230VAC
Over temperature protection	Shut down o/p voltage, auto recovery
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature	-30~+70ºC (refer to output derating curve)
Safety standards	UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved
EMC standards	EN55032 class B, EN61000-4-2,4,6,8,11
Case No	256
Dimension (LxWxH) (mm)	32510741mm
Packing	4pcs/11.6Kg
