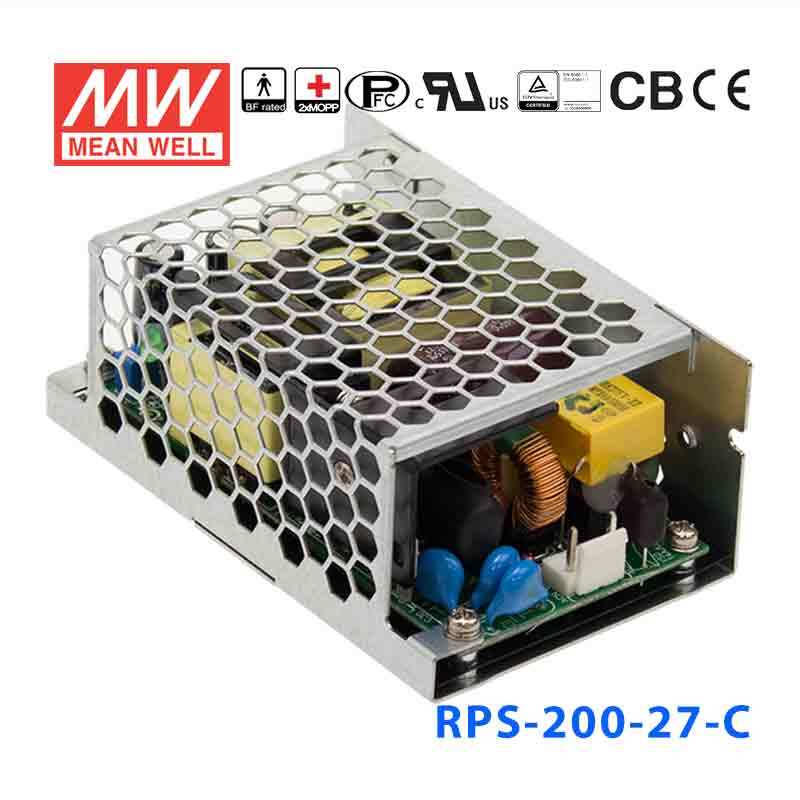

RPS-200-27-C

Name: RPS-200-27-C
Brand: MEAN WELL
Price: 57.69 USD
Availability: OutOfStock

$57.69

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$54.81

20+

$53.65

50+

$52.50

100+

$51.34

200+

$50.19

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

27V

Rated Current

5.3A

Power Rating

143.1W

Waterproof

Non-waterproof

Dimensions

4.07 x 2.44 x 1.57 in

Weight

0.66 lbs

Features

5"x3" compact size

320W convection, 500W force air

550W peak power (3 sec.)/td>

Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1

MEMI for both Class I & Class II configuration

-30~+70°C wide range operating temperature

No load power consumption under 0.5W by PS-ON control

High efficiency up to 94%

Protections: Short circuit / Overload / Over voltage / Over Temp.

5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense

Operating altitude up to 4000 meters (Note.5)

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	80 ~ 264VAC \| 113 ~ 370VDC
AC inrush current	COLD START 40A/115VAC 80A/230VAC
DC adjustment range	±10% rated output voltage
Overload protection	105%~135% hiccup mode, auto-recovery
Over-voltage protection	CH1: 115%~135% shut off, re-power on to recovery
Withstand voltage	I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-30~+70°C (refer to output derating curve)
Leakage current	Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC
Safety standards	ANSI/AAMI ES60601-1, TUV EN60601-1 approved
EMC standards	EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160)
Connection	3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH
Setup, rise, hold up time	1000ms, 30ms, 10ms at full load and 230VAC
Dimension (LxWxH)	127 x 76.2 x 41mm \| 5 x 3 x 1.61 inch
