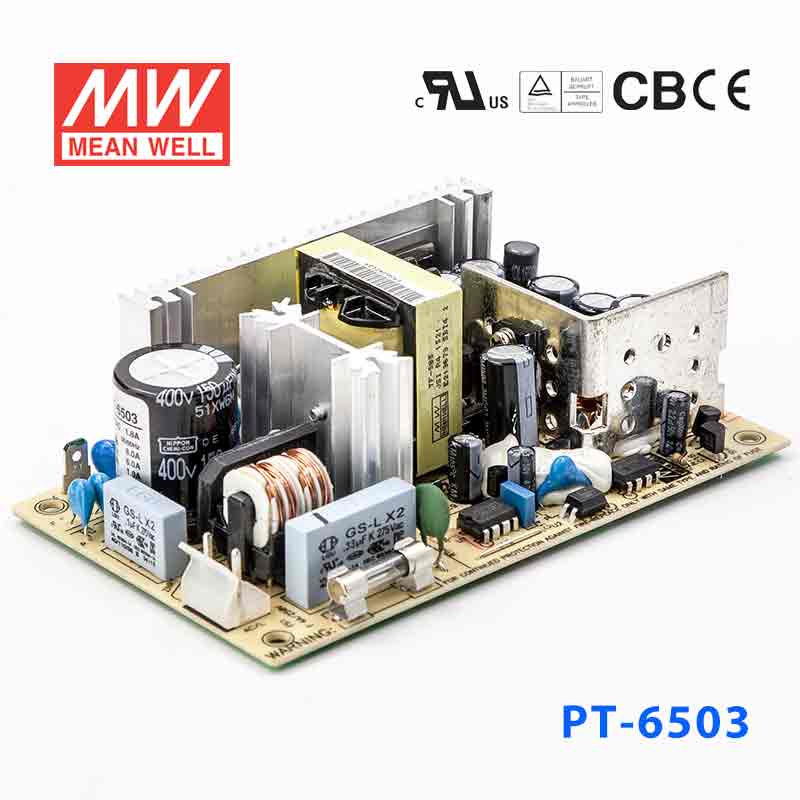

PT-6503

Name: PT-6503
Brand: MEAN WELL
Price: 19.75 USD
Availability: OutOfStock

$19.75

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$18.76

20+

$18.37

50+

$17.97

100+

$17.58

200+

$17.18

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

61.8W

Waterproof

Non-waterproof

Dimensions

5 x 2.99 x 1.65 in

Weight

0.61 lbs

Features

Universal AC input / Full range

Protections: Short circuit/ Overload/ Over voltage

Cooling by free air convection

100% full load burn-in test

Fixed switching frequency at 65KHz

2 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	Cold start 20A/115V
Leakage current	<1mA / 240VAC
Overload protection	130 ~ 185% rated output power
Over-voltage protection	115%~135% rated output voltage
Setup, rise, hold up time	800ms, 50ms, 60ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-10~+60°C
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along the X, Y, and Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
Connection	I/P: 2 Pin Molex 5722-02, O/P: 8 Pin Molex 5273-08
Dimension (LxWxH)	127x76x42
Packing	54pcs / 16.2kg
