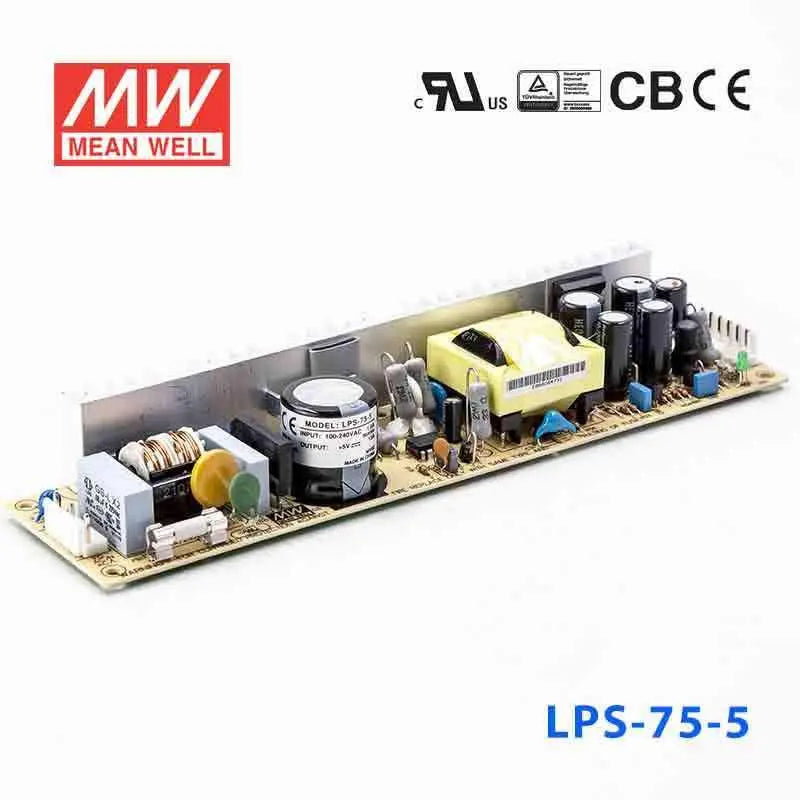

LPS-75-5

Name: LPS-75-5
Brand: MEAN WELL
Price: 19.75 USD
Availability: OutOfStock

$19.75

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$18.76

20+

$18.37

50+

$17.97

100+

$17.58

200+

$17.18

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

15A

Power Rating

75W

Waterproof

Non-waterproof

Dimensions

8.74 x 2.16 x 1.18 in

Weight

0.66 lbs

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Built-in remote ON/OFF control

100% full load burn-in test

2 years warranty for LPS series

General Specification

AC input voltage range	90~264VAC
AC inrush current(230VAC)	36A
DC adjustment range	±10% rated output voltage
Overload protection Range	115%~150%
Overload protection Type	Hiccup mode, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Hiccup mode, auto recovery
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry
Connection	JST B5P / B6P-VH
Dimension (LxWxH)	222x55x30
Packing	48pcs / 15.6kg
