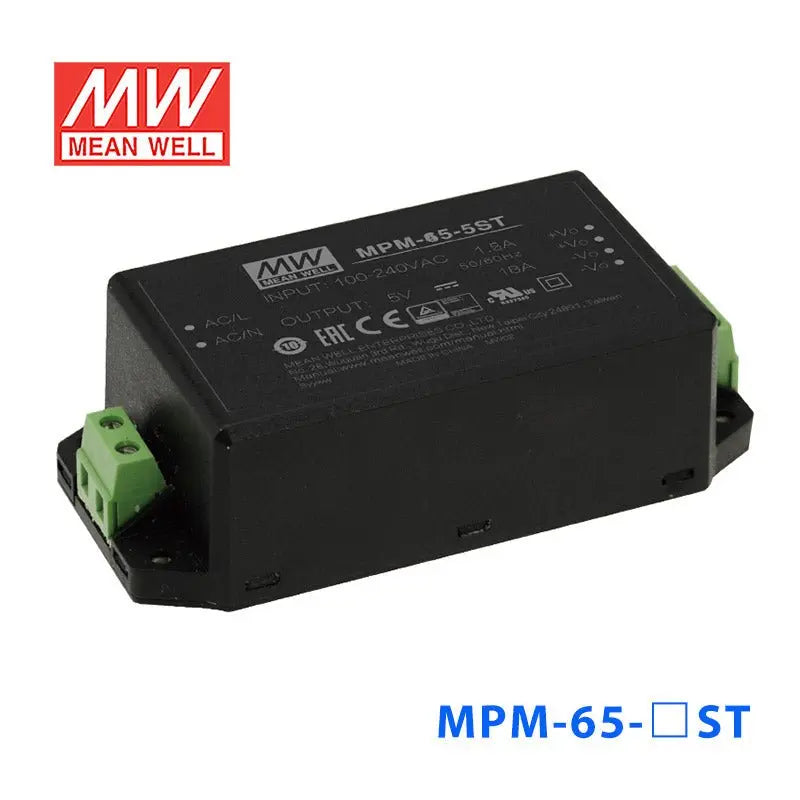

MPM-65-5ST MEAN WELL Power Supply | HTD Electronics
MEAN WELL

MPM-65-5ST

Manufacturer Model Name
Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

MPM-65-5ST
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$31.23 USD
10+
$29.67 USD
20+
$29.04 USD
50+
$28.42 USD
100+
$27.79 USD
200+
$27.17 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
5V
Rated Current
10A
Power Rating
50W
Waterproof
Non-waterproof
Dimensions
4.29 x 2.04 x 1.31 in
Weight
0.47 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

3.43"x2.05" compact size

PCB chassis or screw terminal mounting version
Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
No-load power consumption<0.1W
Extremely low leakage current
Wide operating temp. range -30~+85°C
EMI Class B for class II configuration
Protections: Short circuit/ Overload/ Over voltage/Over temperature
No minimum load required
3 years warranty

General Specification

AC input voltage range 80~264VAC; 113~370VDC
AC inrush current Cold start 45A
Leakage current

Touch current<80 μA/264VAC
Overload protection 110 ~ 150% rated output power
Over-voltage protection 106%~144% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 50ms
Withstand voltage I/P-O/P:4KVAC
Working temperature -30~+80°C
Vibration 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes
Safety standards IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request)
EMC standards EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No IRM60
Dimension (LxWxH) 87x52.2x29.5
Packing 60pcs / 12.5kg

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
