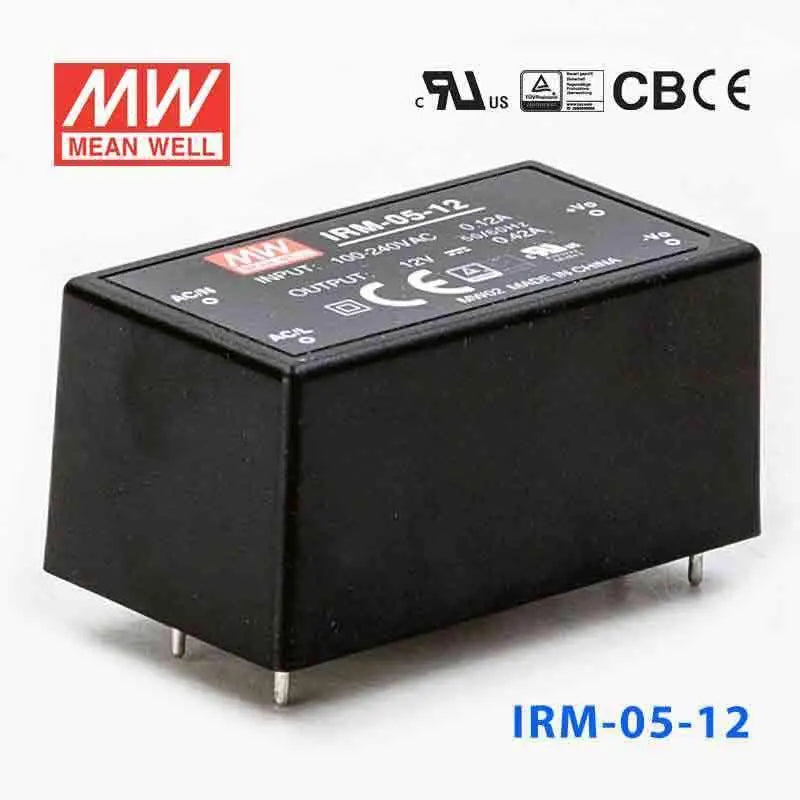

IRM-05-12 MEAN WELL Power Supply | HTD Electronics
Manufacturer MEAN WELL

IRM-05-12

Availability: Out of stock
5.04 W12 V0.42 A85V–305V in

Request a Backorder

Submit your request and we will confirm lead time.

IRM-05-12
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$6.97 USD
10+
$6.62 USD
20+
$6.48 USD
50+
$6.34 USD
100+
$6.20 USD
200+
$6.06 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V~305V
Output Voltage
12V
Rated Current
0.42A
Power Rating
5.04W
Waterproof
Non-waterproof
Dimensions & Weight
1.79 x 1 x 0.84 in0.07 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range
No load power consumption < 0.1W
Protections: Short circuit / Overload / Over voltage
Miniature size, high power density
Cooling by free air convection
Isolation class II
Fully isolated plastic case
Withstand 5G vibration test
Low cost, high reliability
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 20A at 115VAC, 40A at 230VAC
Setup, rise, hold up time 600ms, 30ms, 80ms
Overload protection 115%~260%
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C (refer to output derating curve)
Leakage current Less than 0.75mA at 240VAC
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 4 industrial pins
Dimension (LxWxH) 45.7x 25.4x 21.5
Vibration 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
