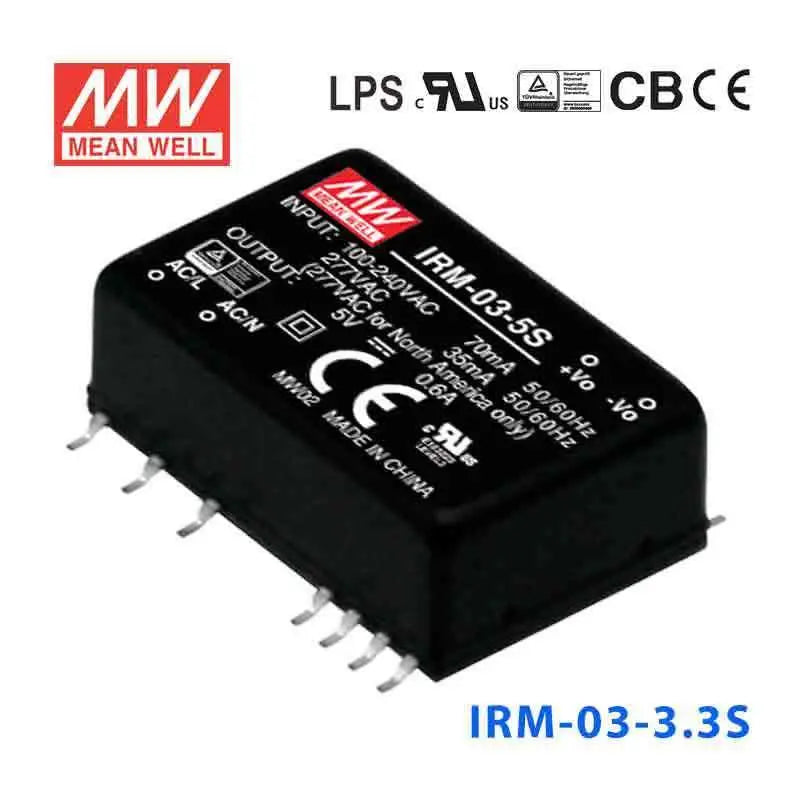

IRM-03-3.3S

Name: IRM-03-3.3S
Brand: MEAN WELL
Price: 6.22 USD
Availability: OutOfStock

$6.22

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$5.91

20+

$5.78

50+

$5.66

100+

$5.54

200+

$5.41

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

3.3V

Rated Current

0.9A

Power Rating

Waterproof

Non-waterproof

Dimensions

1.45 x 0.94 x 0.62 in

Weight

0.05 lbs

Features

Universal AC input / Full range

No load power consumption < 0.075W

Protections: Short circuit / Overload / Over voltage

Compact size

Cooling by free air convection

Isolation class II

High reliability

Low cost

3 years warranty

General Specification

AC input voltage range	85~305VAC; 120~430VDC
AC inrush current (max.)	Cold start, 10A at 115VAC, 20A at 230VAC
Setup, rise, hold up time	600ms, 30ms, 40ms
Overload protection	105%~260% rated output voltage, hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+85°C (refer to output derating curve)
Leakage current	Less than 0.25mA at 277VAC
Safety standards	UL60950-1, TUV EN60950-1,TUV EN60335-1 approved,Design refer to IEC60601-1, EN61558-1/-2-16
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN55024
Dimension (LxWxH)	PCB mounting style : 37x 24x 15mm SMD style : 37x 24x 16 mm
Vibration	10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes
