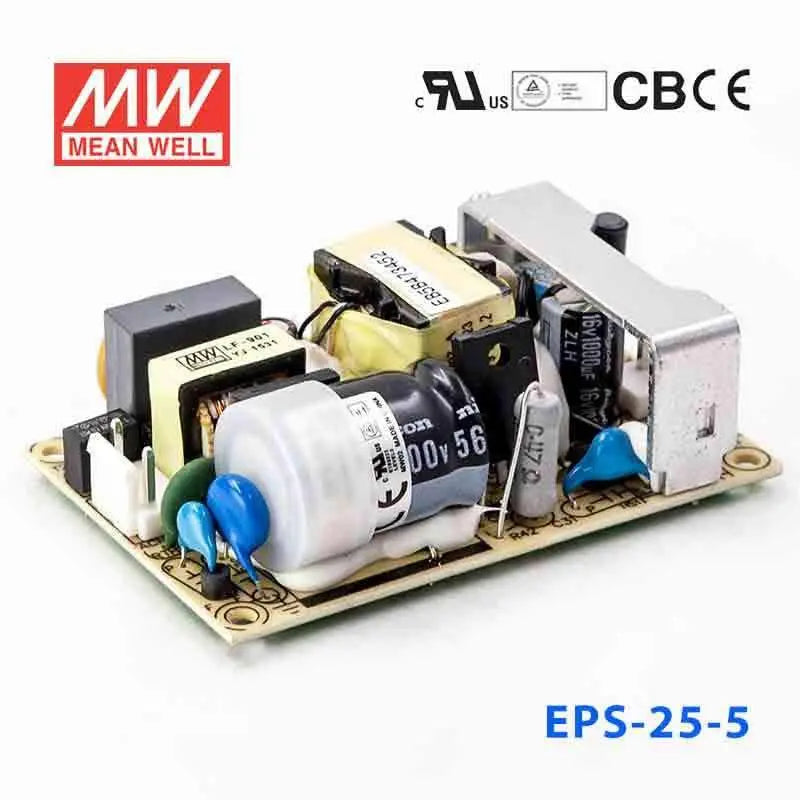

EPS-25-5

Name: EPS-25-5
Brand: MEAN WELL
Price: 12.69 USD
Availability: OutOfStock

$12.69

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$12.06

20+

$11.80

50+

$11.55

100+

$11.29

200+

$11.04

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

25W

Waterproof

Non-waterproof

Dimensions

3 x 2 x 0.94 in

Weight

0.17 lbs

Features

Universal AC input / Full range

No load power consumption < 0.3W

Protections: Short circuit / Overload / Over voltage

High efficiency up to 90%

Cooling by free air convection

Compact size

LED indicator for power on

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	±10% rated output voltage
Overload protection Range	115%~170% rated output power
Overload protection Type	Hiccup mode, auto recovery
Over voltage protection	110%~140%
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	3+2P/3.96mm pitch, JST B3P/B2P-VH
Dimension (LxWxH)	76.2x50.8x24
