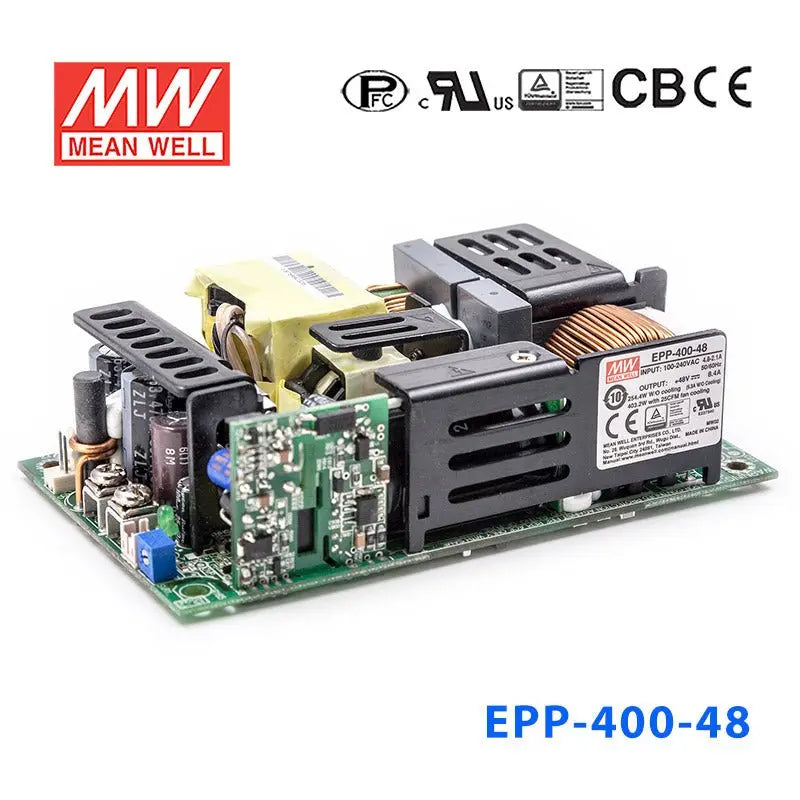

EPP-400-48

Name: EPP-400-48
Brand: MEAN WELL
Price: 77.26 USD
Availability: OutOfStock

$77.26

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$73.40

20+

$71.85

50+

$70.31

100+

$68.76

200+

$67.22

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

5.3A

Power Rating

254.4W

Waterproof

Non-waterproof

Dimensions

5 x 3 x 1.37 in

Weight

0.85 lbs

Features

Universal AC input / Full range

Built-in active PFC function
EMI Class B for Class I & Class A for Class II configuration

High efficiency up to 93%

Withstand 300VAC surge input for 6 seconds
No load power consumption<0.5W by PS ON control
5"x3" miniature size
High efficiency up to 94%

Protections: Short circuit/Overload/Over voltage/Over temperature

Cooling by free air convection for 250W and 400W with 25 CFM forced air
Built-in 12V/0.5A FAN
With power good and fail signal output
Built-in remote sense function

No load power consumption under 0.5W by PS-ON control
Standby 5V@1A with fan, @ 0.6A without fan

LED indicator for power on
Output 18V available

Operating altitude up to 5000 meters

3 years warranty

General Specification

AC input voltage range	80 ~ 264VAC; 113 ~ 370VDC
AC inrush current	COLD START 40A/115VAC
Leakage current	<0.75mA / 240VAC
Overload protection	105 ~ 135% rated output power
Over-voltage protection	108%~130% rated output voltage
Setup, rise, hold up time	1000ms, 30ms, 16ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1,BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	127x76.2x35
Packing	36pcs / 15kg
