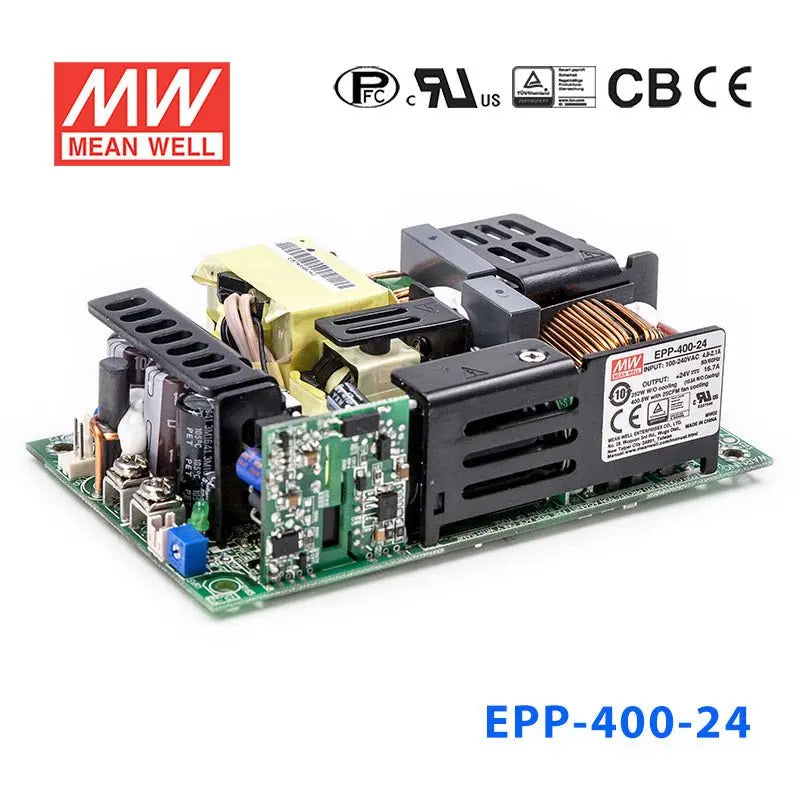

EPP-400-24 MEAN WELL Power Supply | HTD Electronics
MEAN WELL

EPP-400-24

Manufacturer Model Name
Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

EPP-400-24
Quantity Prices (USD)
Quantity
Unit Price (USD)
1+
$77.26 USD
10+
$73.40 USD
20+
$71.85 USD
50+
$70.31 USD
100+
$68.76 USD
200+
$67.22 USD
All prices are displayed in USD. *Import tariff is included in the listed price. You pay exactly what you seeā€”no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Output Voltage
24V
Rated Current
10.5A
Power Rating
252W
Waterproof
Non-waterproof
Dimensions
5 x 3 x 1.37 in
Weight
0.85 lbs

Datasheet (PDF)

Open PDF
If the PDF doesnā€™t load here, click ā€œOpen PDFā€.

Features

Universal AC input / Full range
Built-in active PFC function
EMI Class B for Class I & Class A for Class II configuration
High efficiency up to 93%
Withstand 300VAC surge input for 6 secondsĀ
No load power consumption<0.5W by PS ON control
5"x3" miniature size
High efficiency up to 94%
Protections: Short circuit/Overload/Over voltage/Over temperature
Cooling by free air convection for 250W and 400W with 25 CFM forced air
Built-in 12V/0.5A FAN
With power good and fail signal output
Built-in remote sense function

No load power consumption under 0.5W by PS-ON control
Standby 5V@1A with fan, @ 0.6A without fanĀ
LED indicator for power onĀ
Output 18V available
Operating altitude up to 5000 meters
3 years warranty

General Specification

AC input voltage range 80 ~ 264VAC; 113 ~ 370VDC
AC inrush current COLD START 40A/115VAC
Leakage current

<0.75mA / 240VAC
Overload protection 105 ~ 135% rated output power
Over-voltage protection 108%~130% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 16ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -30~+70Ā°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1,BS EN/EN60335-1, IEC62368-1, CCC GB4943.1, EAC TP TC 004 approved
EMC standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH) 127x76.2x35
Packing 36pcs / 15kg

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
šŸ“„ E6) COC-REACH (2026/01/28) šŸ“„ E9) CMRT (2025/04/25) šŸ“„ E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) šŸ“„ REACH Certificate (PDF) (2020/12/03) šŸ“„ ROHS Certificate (PDF) (2020/05/29) šŸ“„ E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
