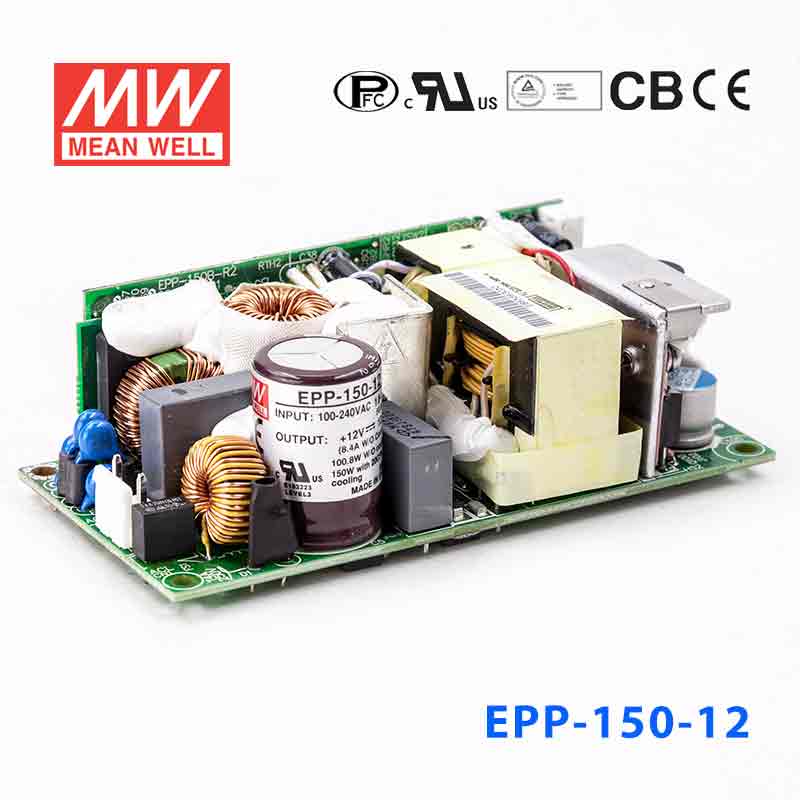

EPP-150-12

Name: EPP-150-12
Brand: MEAN WELL
Price: 43.89 USD
Availability: OutOfStock

$43.89

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$41.70

20+

$40.82

50+

$39.94

100+

$39.06

200+

$38.18

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

8.4A

Power Rating

100.8W

Waterproof

Non-waterproof

Dimensions

4 x 2 x 1.14 in

Weight

0.44 lbs

Features

4"x2" compact size

Universal AC input / Full range

Built-in active PFC function

High efficiency up to 93%

Protections: Short circuit/Overload/Over voltage/Over temperature

100W free air convection, 150W with 20CFM forced air

LED indicator for power on

No-load power consumption<0.5W

Built-in 12V /0.3A auxiliary output

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	COLD START 70A/230VAC
Leakage current	<2mA/240VAC
Overload protection	105 ~ 145% rated output power
Over-voltage protection	110%~130% rated output voltage
Setup, rise, hold up time	1000ms, 30ms, 16ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	101.6x50.8x29
Packing	72pcs / 15.4kg
