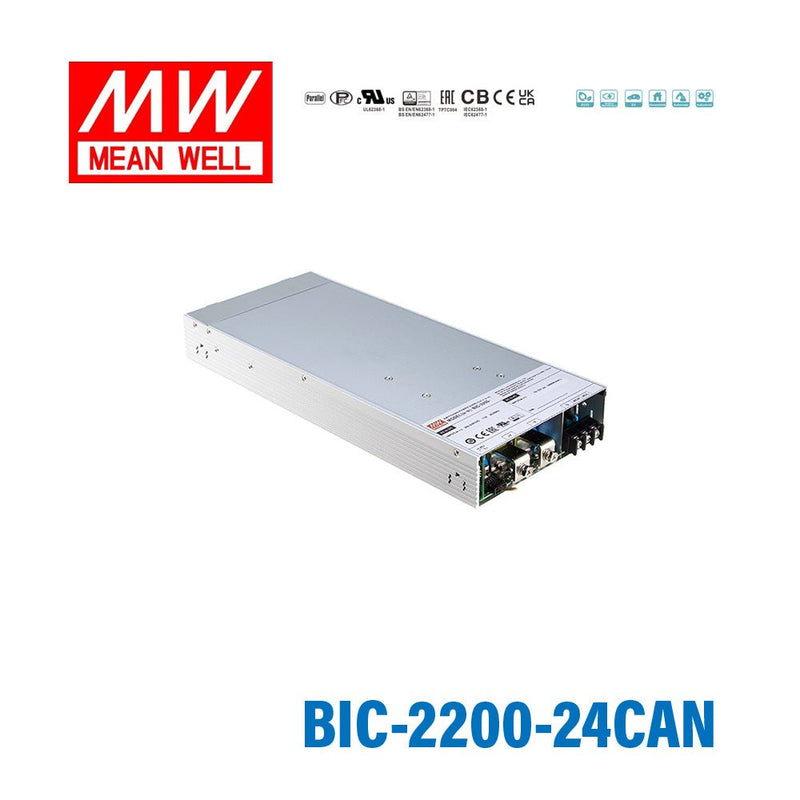

BIC-2200-24CAN

Name: BIC-2200-24CAN
Brand: MEAN WELL
Price: 716.98 USD
Availability: OutOfStock

$716.98

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$681.13

20+

$666.79

50+

$652.45

100+

$638.11

200+

$623.77

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

90A

Power Rating

2200W

Waterproof

Non-waterproof

Dimensions

12.99 x 5.51 x 1.61 in

Weight

6.39 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

1U low profile design

Full digital design with 93% conversion efficiency

Ultrafast switching time between AC/DC and DC/AC of 1ms

CB/TUV/UL 62368-1 certified, and design refer to IEC 62477 regulation

Active current sharing up to 11000W

<3% Low THDi in both conversion mode

Force charging and discharding mode with CANBus model

High efficiency, long life and high reliability

Complete protections: Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP

5 years warranty

General Specification

AC input voltage range	180~264VAC, 255~373VDC
AC inrush current (max.)	35A at 230VAC
DC adjustment range	±15% by potentiometer
Overload protection	105%~115%
Over voltage protection	146%~173% rated output voltage, auto-recovery
Withstand voltage	I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature	-30~+70°C
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV EN62368-1 approved
EMC standards	EN55032 class B, EN61000-3-2,3
Connection	Terminal block for input and output
Dimension (LxWxH)	330x 140x 41
Case No.	277C
Packing	4pcs /12.6kg
