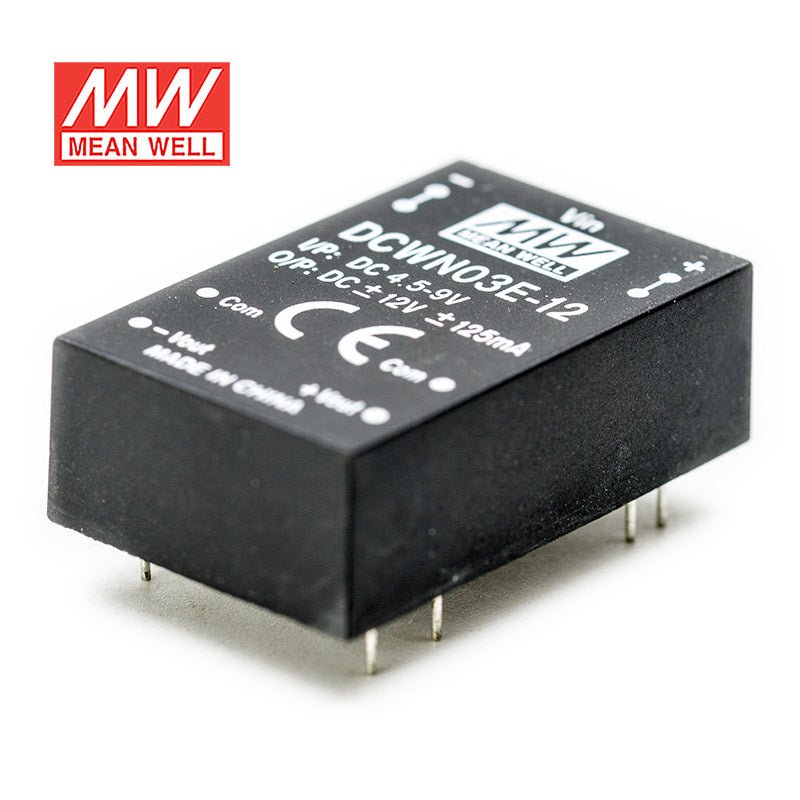

DCWN03E-12

Name: DCWN03E-12
Brand: MEAN WELL
Availability: OutOfStock

$0.00

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$0.00

20+

$0.00

50+

$0.00

100+

$0.00

200+

$0.00

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

0.12A

Power Rating

Waterproof

Non-waterproof

Dimensions

1.25 x 0.79 x 0.40 in

Weight

0.02 lbs

Features

DIP24 package with industry-standard pinout

2:1 wide input range

Operating temperature range -40~+90°C

No minimum load required

Comply to BS EN/EN55032 radiated Class A without additional components

High efficiency up to 87%

Protections: Short circuit(Continuous)/Overload/Input under voltage

3KVDC I/O isolation

3 years warranty

General Specification

Voltage set point accuracy	±1.5% (max.)
Line regulation	±0.5% (max.)
Load regulation	Single output models:±0.5%, Dual output models:±1%
Overload protection	120%~250%, auto-recovery
Efficiency	87% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	I/P-O/P:3KVDC
I/O isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
Isolation capacitance	250pF (max.)
Working temperature	-40~+90°C
Storage temperature	-40°C to +105°C
EMC	Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	31.820.310.2mm (1.250.80.4 inch)
Case material	Non-conductive black plastic(UL 94V-0 rated)
